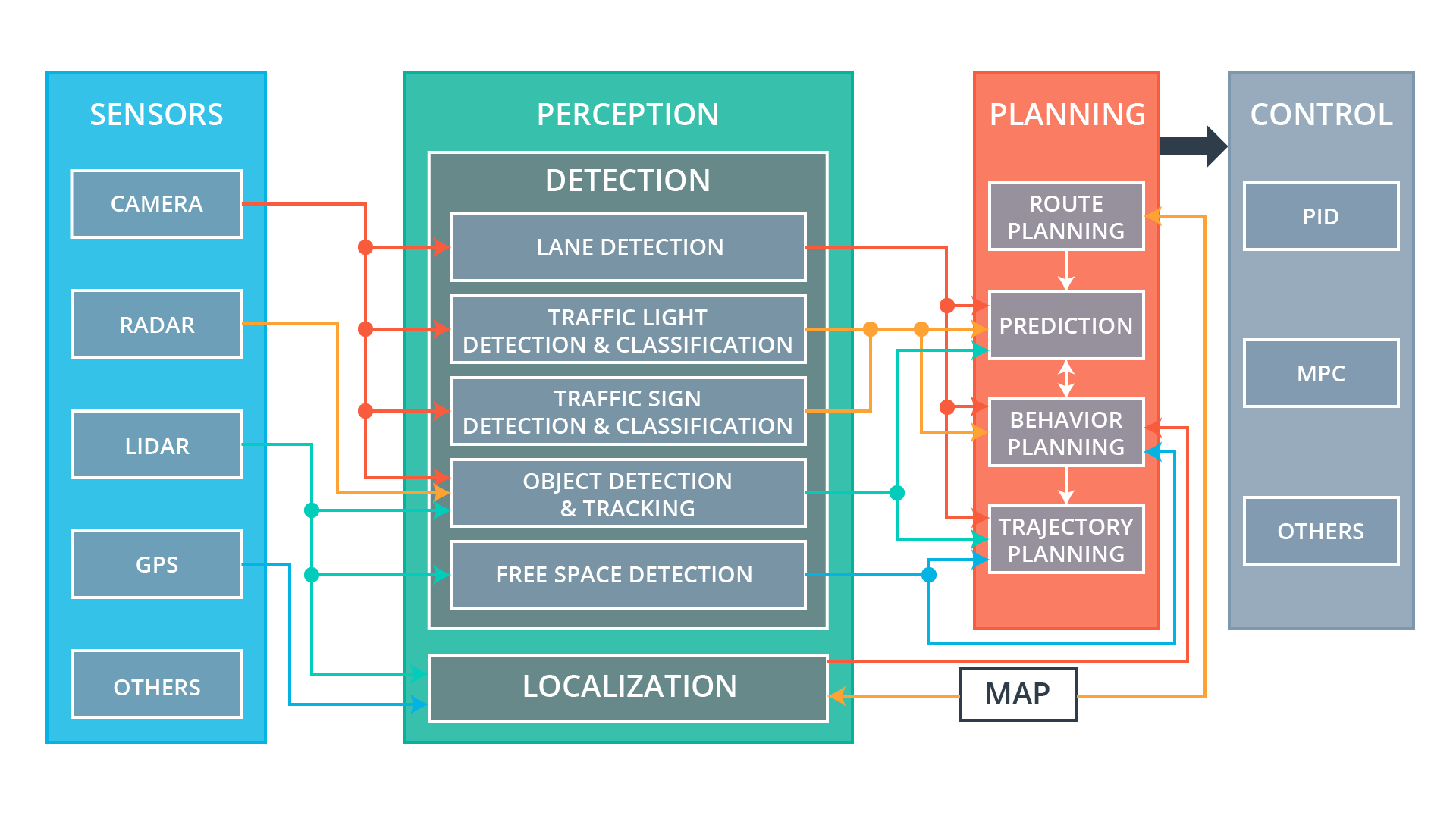

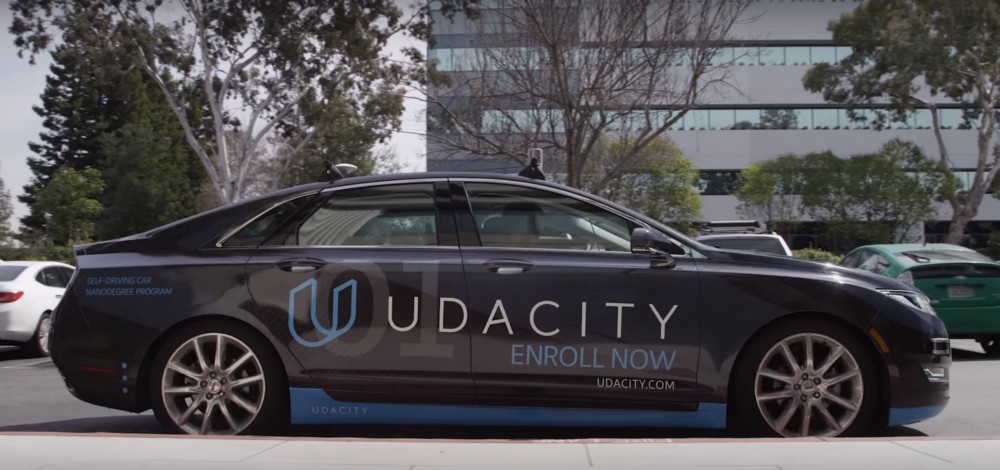

In this section we cover local planning in environments which are stochastic and partially observed. The discussion is focused on mobile platforms such as autonomous cars. carla-system Example of an agent (Udacity’s CARLA serf-driving car) in the late 2010s carla-car There are two main schools of thought in designing local planning systems for autonomous cars:
ApproachDescription
Modular PipelineIn the modular architecture in here sensors, perception, planning and control subsystems that work together to achieve the task at hand.
End-to-End PipelineIn end-to-end approach the entire pipeline of transforming sensory inputs to driving commands is treated as a single learning task. This is what we also call Imitation Learning (IL) and is used to determine from only pixel input the steering and acceleration controls of a vehicle. Apart from IL, Reinforcement Learning (RL) can also be used in a simulator setting to transfer the learned optimal policy in the real-world. This is covered in a separate section.

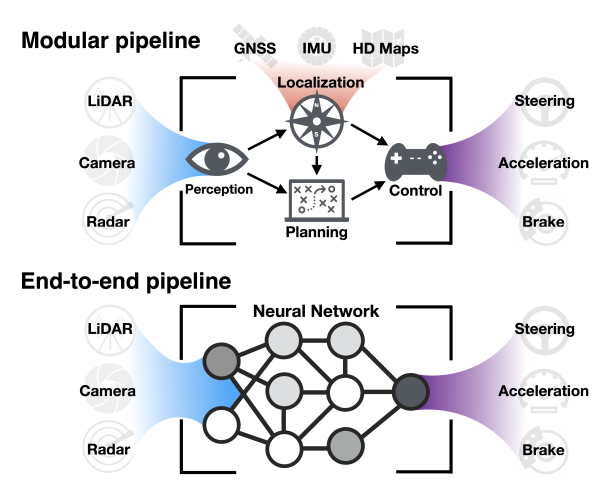

planning-approaches Modular vs End-to-End pipeline for real-world local planning

​
Modular Pipeline

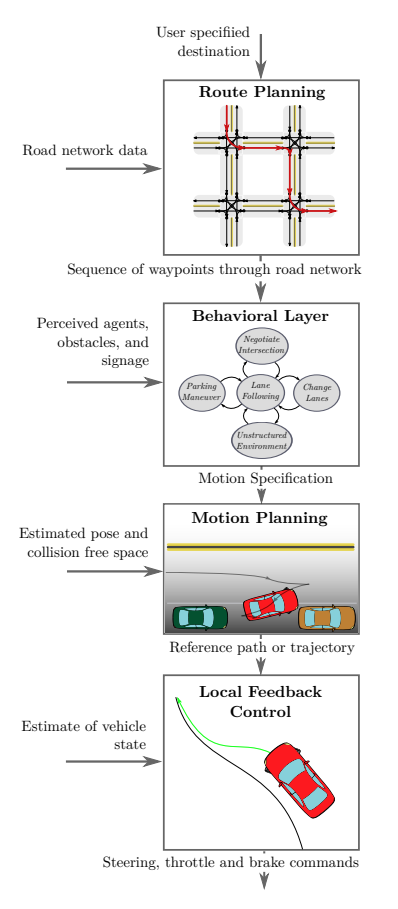

The modular pipeline as shown below, consists of four main modules: NOTE: In the description below the local planning module mentioned in the figure is called trajectory generation. modular-pipeline Modular pipeline functional flow -from here.
  1. Global (Route) planning. In global route planning we are given a graph G=(V,E)G=(V, E) and the agent must solve the problem of finding a shortest path (cost) route from the source vertex ss to a destination or goal gg. The route planning scenarios can be fairly complicated involving a mixture of road network restricted and unrestricted (eg. parking lot) modes. Route planning is usually decoupled from the other latency-sensitive subsystems of planning - it is being very infrequently executed.
  2. Prediction. This involves estimations of what other agents active in the same locale as the agent of interest will do next.
  3. Behavioral decision making. Makes a decision of the best action that the agent should make given the predictions of the other agents perceived intentions, signal and traffic sign detections.
  4. Trajectory generation. The action decided by the behavioral planning module, is translated to a trajectory. The control subsystem will attempt to follow it as close as possible.
The modular approach allows for engineering teams to divide and conquer each module almost independently of the others, provided that the system architecture governed by the interfaces of the modules allows it. But advantages go beyond the clear separation of tasks and extend to explainability: each module is free to invent the representations that is best suited for its task and compartmentalize the final decision about the trajectory of the agent, allowing us humans to go back and understand how the decision was reached. Having said that, modular architectures are working fine as long as the representations, their transformations and the individual module decisions support the real world environment that the agent is to operate. The moment the environment deviates from the typically expected one, modular architectures require retuning to be able to accommodate more corner cases never thought during the initial design. ball-road There are potentially tens of scenarios each with a different decision making process (reasoning) involving kids playing with balls Take for example, the case where the perception system detects children playing on the side of the road and a ball suddenly rolling onto the road - a decision to slam the brakes would have been prudent in a residential street but very risky in a higher speed road where e.g. changing the lane would be more prudent to avoid a rear end collision. The context of decision making is complex and the end to end pipeline approach if there are enough data (supervised or reinforcing) can generalize to cover cases that were not designed in.
