Logistic Regression
Logistic regression is used in machine learning extensively - every time we need to provide probabilistic semantics to an outcome e.g. predicting the risk of developing a given disease (e.g. diabetes; coronary heart disease), based on observed characteristics of the patient (age, sex, body mass index, results of various blood tests, etc.), whether an voter will vote for a given party, predicting the probability of failure of a given process, system or product, predicting a customer’s propensity to purchase a product or halt a subscription, predicting the likelihood of a homeowner defaulting on a mortgage.
Odds and the Logistic Sigmoid
If \(\sigma\) is a probability of an event, then the ratio \(\frac{\sigma}{1-\sigma}\) is the corresponding odds, the ratio of the event occurring divided by not occurring. For example, if a race horse runs 100 races and wins 25 times and loses the other 75 times, the probability of winning is 25/100 = 0.25 or 25%, but the odds of the horse winning are 25/75 = 0.333 or 1 win to 3 loses. In the binary classification case, the log odds is given by
\[ \mathtt{logit}(\sigma) = \alpha = \ln \frac{\sigma}{1-\sigma} = \ln \frac{p(y=1|\mathbf{x})}{p(y=0 |\mathbf{x})}\]
The logistic function of any number \(\alpha\) is given by:
\[\mathtt{logistic}(\alpha) = \sigma(\alpha) = \mathtt{logit}^{-1}(\alpha) = \frac{1}{1 + \exp(-\alpha)} = \frac{\exp(\alpha)}{ \exp(\alpha) + 1}\]
and is plotted below. It maps its argument to the “probability” space [0,1].

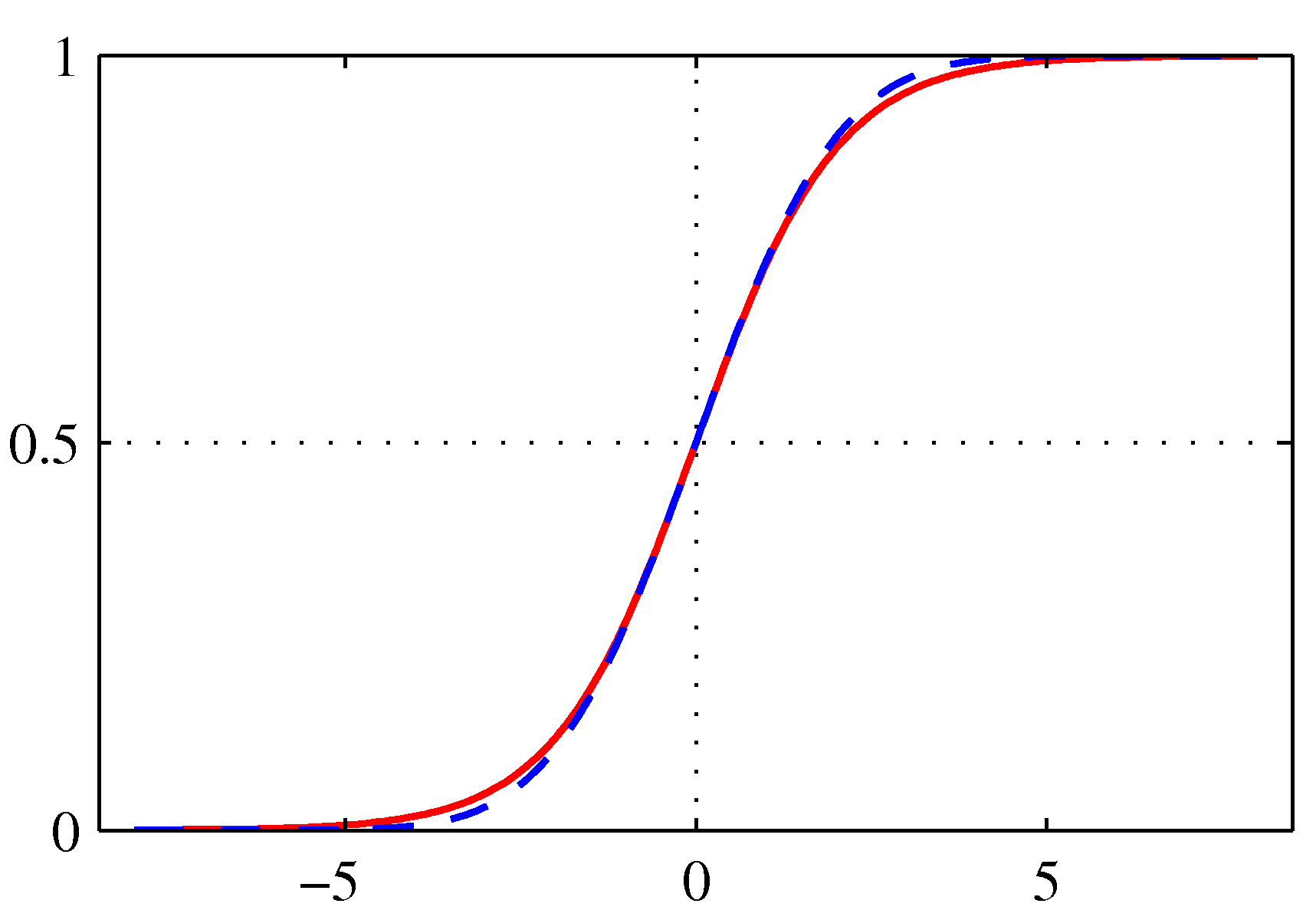

Logistic sigmoid (red)
The sigmoid function satisfies the following symmetry:
\[\sigma(-\alpha) = 1 - \sigma(\alpha)\]
Binary case
If we consider the two class problem, we can write the posterior probability as,
\[p(y=1|\mathbf{x}) = \frac{p(\mathbf{x}|y=1) p(y=1)}{p(\mathbf{x}|y=1) p(y=1) + p(\mathbf{x}|y=0) p(y=0)} = \frac{1}{1 + \exp(-\alpha)} = \sigma(\alpha)\]
where \(\alpha = \ln \frac{p(\mathbf{x}|y=1) p(y=1)}{p(\mathbf{x}|y=0) p(y=0)}\).
Given the posterior distribution above, we have for the specific linear activation,
\[p_{model}(y=1|\mathbf{x}) = \hat y = \sigma(\mathbf{w}^T \mathbf{x})\]
This model is called logistic regression - despite its name its models a classification task.
The figure below shows the corresponding posterior distribution \(p(y=1|\mathbf{x})\)

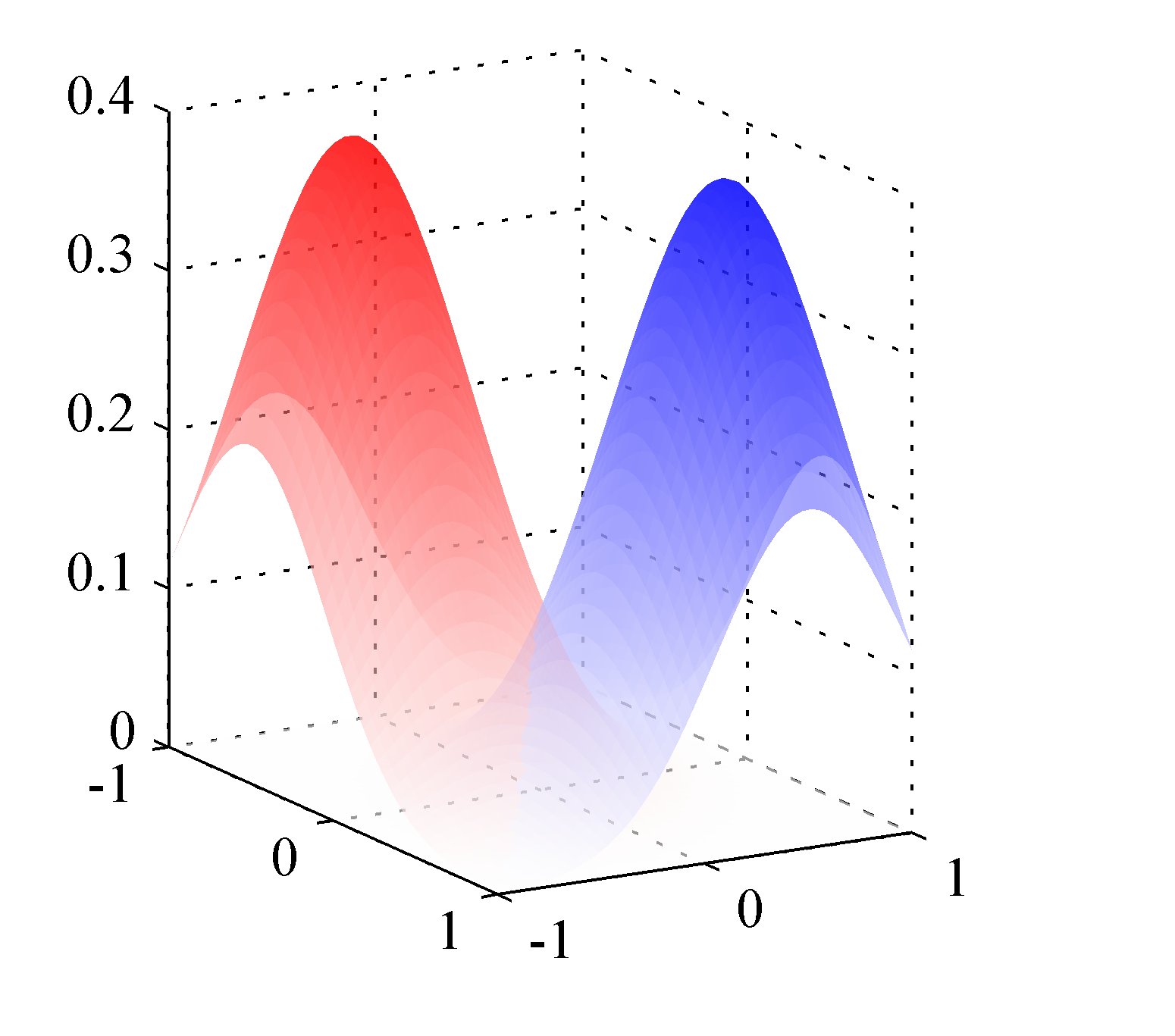

The class-conditional densities for two classes, denoted red and blue. Here the class-conditional densities \(p(\mathbf{x}|y=1)\) and \(p(\mathbf{x}|y=0)\) are Gaussian

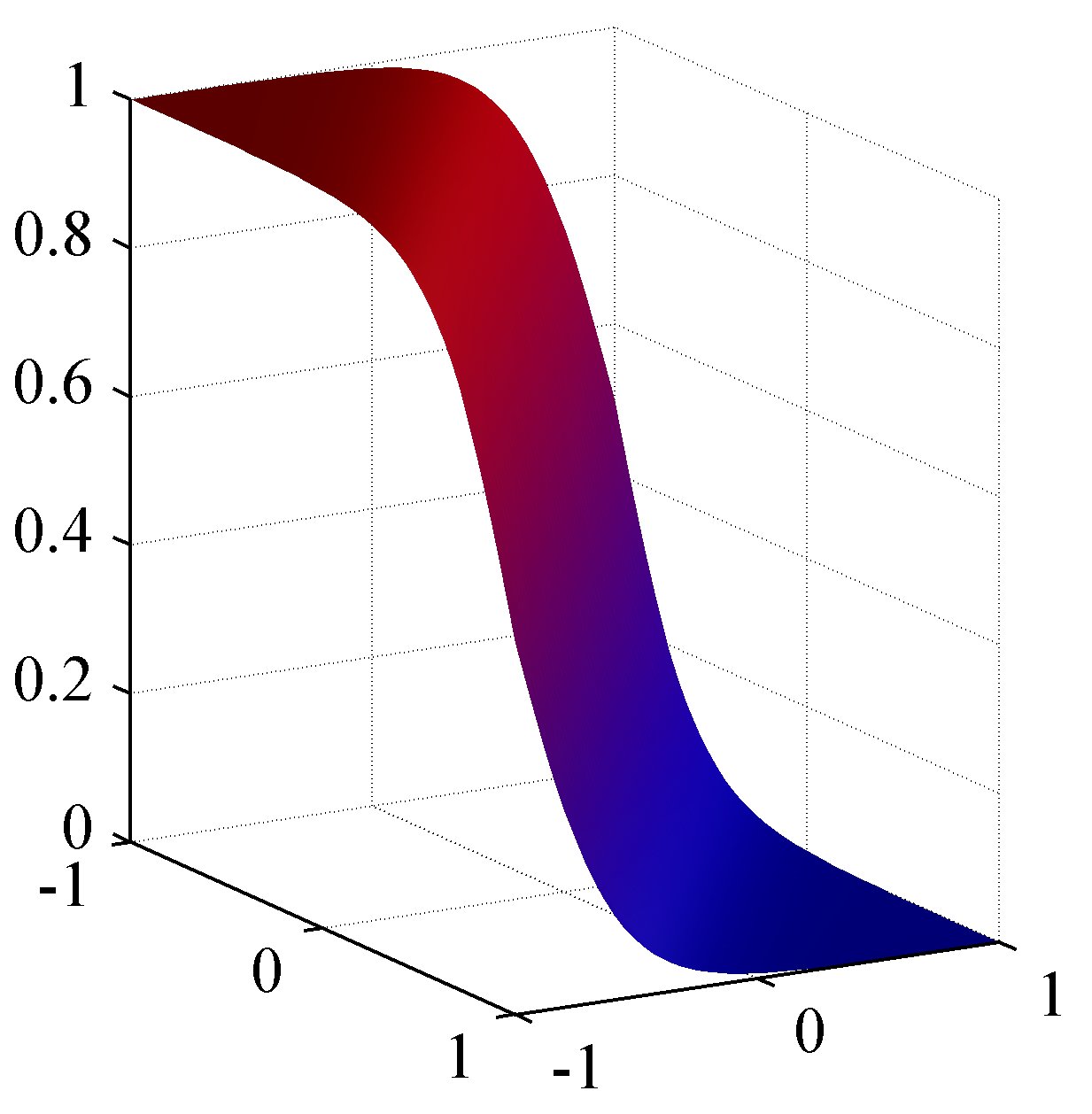

The corresponding posterior probability for the red class, which is given by a logistic sigmoid of a linear function of \(\mathbf{x}\).
By repeating the classical steps in ML methodology i.e. writing down the expression of the likelihood function (this will now be a product of binomials), we can write down the negative log likelihood function for the binary case as,
```qwvaeo Binary CE Loss \[L(\mathbf{w}) = L(y, \hat{y}) = - \ln p(\mathbf{y},\mathbf{w}) = - \big[ \sum_{i=1}^m \{y_i \ln \hat{y}_i + (1-y_i) \ln (1-\hat{y}_i) \} \big]\]
which is called cross entropy loss function - probably the most widely used error function (in classification as well as regression) due to its information theoretic roots. ```
Its shape is shown in the figure below for an example case where the \(y=1\). It is also known as log-loss.
CE Loss vs predicted probability for class “1”
The behavior of the loss function is telling: it heavily penalizes confident wrong decisions. Notice its exponential rise when the probability \(\hat{y}\) of the class “1” is close to 0.0 which means that the classifier predicted with high confidence the opposite class that the ground truth. On the other hand, when the probability of \(\hat y\) is close to 1.0, which means that the classifier predicts the class “1” with confidence, we exhibit minimal loss and in the limit zero loss.
Optimizing LR parameters with SGD
Minimizing the Binary CE (log-loss) starts from the negative log likelihood:
\[L(\mathbf{w}) = - \ln p_{model}(\mathbf{y},\mathbf{w}) = - \big[ \sum_{i=1}^m \{y_i \ln \hat{y}_i + (1-y_i) \ln (1-\hat{y}_i) \} \big]\]
\[ = - \big[ \sum_{i=1}^m \{y_i \ln \hat{y}_i + (1-y_i) \ln (1-\hat{y}_i) \} \big]\]
\[ = - \big[ \sum_{i=1}^m \{y_i \ln \frac{1}{1+\exp(-\alpha)} +(1- y_i) \ln (1 - \frac{1}{1+\exp(-\alpha)}) \} \big] \]
\[ = - \big[ \sum_{i=1}^m \{y_i \big[ \ln \frac{1}{1+\exp(-\alpha)} - \ln (1 - \frac{1}{1+\exp(-\alpha)}) \big] + \ln (1 - \frac{1}{1+\exp(-\alpha)} \} \big] \]
\[ = - \big[ \sum_{i=1}^m \{y_i \alpha + \ln (1+\exp(\alpha) \} \big] \]
\[ = - \big[ \sum_{i=1}^m \{y_i \mathbf w^T \mathbf x + \ln (1+\exp(\mathbf w^T \mathbf x) \} \big] \]
We need to minimize it with respect to \(\mathbf{w}\) and this requires calculating its gradient. The gradient can be derived to be:
\[\nabla_\mathbf w L = \sum_{i=1}^m (\hat{y}_i - y_i) x_i\]
The expression above defines the batch gradient decent algorithm. We can then readily convert this algorithm to mini-batch SGD by considering mini-batch updates of size \(m_b\) i.e. instead of \(m\) we sum over \(m_b\) where the later is a hyperparameter.
