Multi-Head Self-Attention

Earlier we have seen examples with the token bear being in multiple grammatical patterns that also influence its meaning. For example, we have seen the subject-verb-object pattern and the subject-verb-adjective-subject pattern. To capture such multiplicities we can use multiple attention heads where each attention head learns a different pattern such as the three shown in figure below.

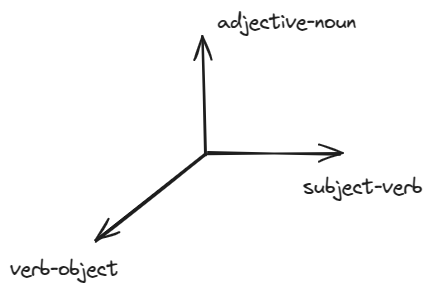

Axes of the attention heads in a multi-head attention mechanism. Each head learns a different pattern, such as subject-verb-object, subject-verb-adjective-subject, and subject-verb-adverb-object. This is just an analogy though and it could be valid in the first few blocks of the transformer. Think of the multiple heads in transformer architectures to be analogous to the multiple filters we use in CNNs. if

H

is the number of heads, indexed by

h

, then each head delivers

H_h = \mathtt{Attention}(Q_h, K_h, Vh)

where

Q_h, K_h, V_h

are the query, key and value matrices of the

h-th

head.

Q_h = X W_h^q

K_h = X W_h^k

V_h = X W_h^v

where

W_h^q, W_h^k, W_h^v

are the weight matrices of the

h-th

head. The output of the multi-head attention is then given by

\hat X = \mathtt{concat}(H_1, H_2, ..., H_H)W^o

where

W^o

is the output weight matrix with dimensions

H d_v \times d

and typically

d_v = d/H

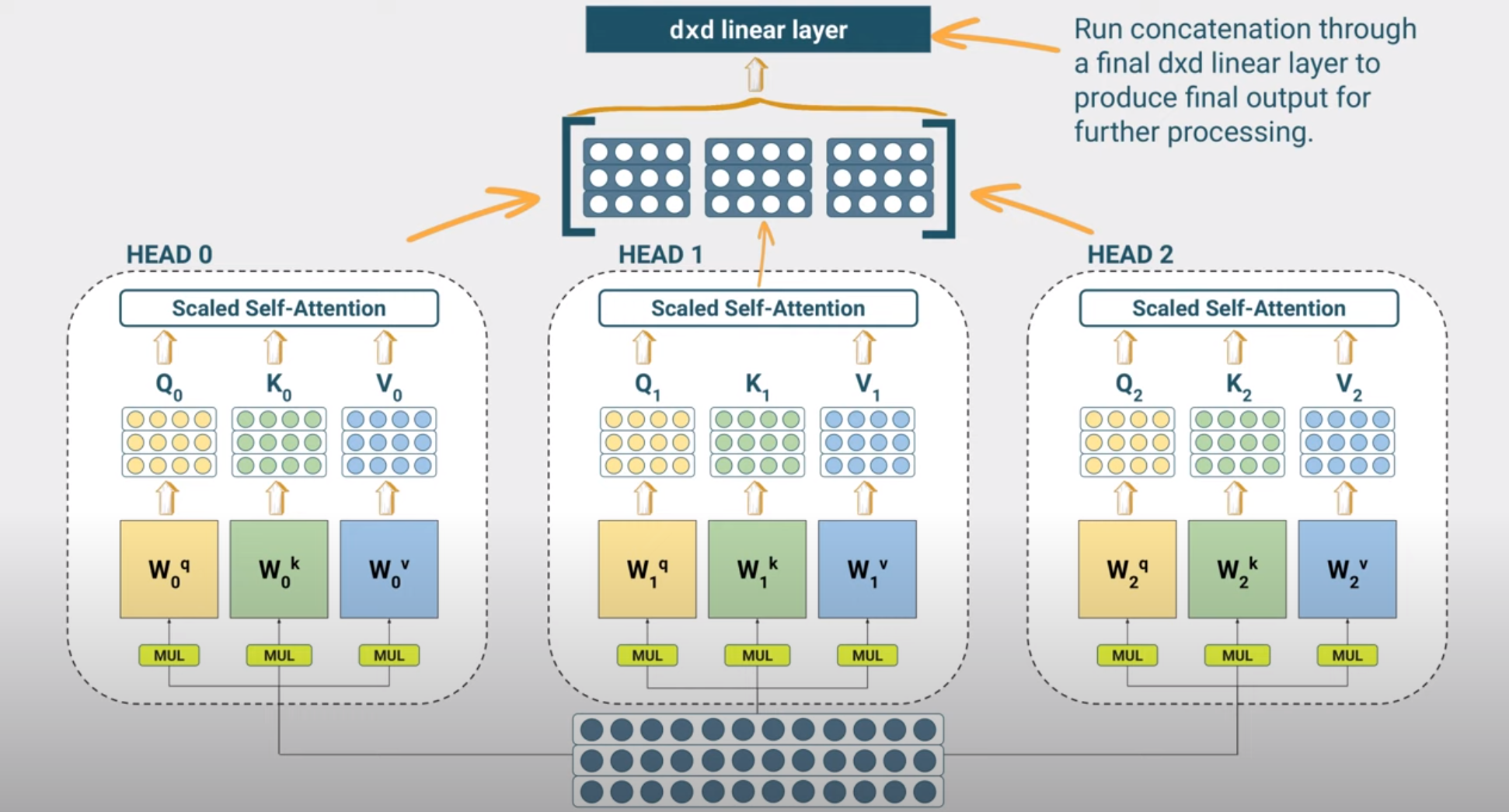

Multi-head attention mechanism. Each head learns a different pattern, and the output is a concatenation of the outputs of all heads, followed by a linear transformation with the weight matrix

W^o

that we call mixing matrix since it mixes / combines the outputs of the heads. The

W^o

matrix and the

W_h^q, W_h^k, W_h^v

matrices are learned during training. The complexity of running multiple heads does not scale with the number of heads since as you can also see in the code below we divide the head-size by the number of heads, avoiding a corresponding increase in the number of parameters.

class MultiHeadAttention(nn.Module):
    def __init__(self, config):
        super().__init__()
        embed_dim = config.hidden_size
        num_heads = config.num_attention_heads
        head_dim = embed_dim // num_heads
        self.heads = nn.ModuleList(
            [AttentionHead(embed_dim, head_dim) for _ in range(num_heads)]
        )
        self.output_linear = nn.Linear(embed_dim, embed_dim)

    def forward(self, hidden_state):
        x = torch.cat([h(hidden_state) for h in self.heads], dim=-1)
        x = self.output_linear(x)
        return x

Attention Blocks with Skip Connections

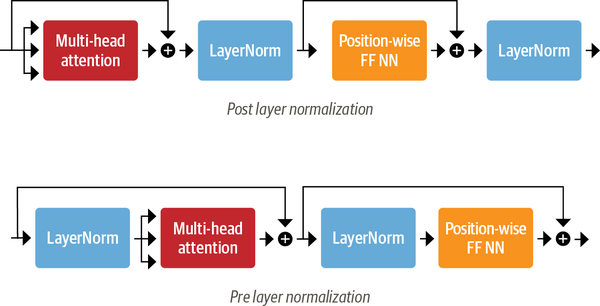

Layer Normalization is a technique that normalizes the inputs across the features for each individual example, rather than across the batch. This helps stabilize the learning process and can lead to faster convergence. Layer Normalization has been shown to improve training efficiency and therefore we apply layer normalization to the input of the multihead self attention (MHSA).

Z = \mathtt{LayerNorm}(\hat X)

In addition we borrow the same idea we have seen from ResNet, and add a skip connection from the input to the output of the MHSA.

\hat Z = \mathtt{MHSA}(Z) + \hat X

We call the above block an attention block and since we know that depth helps in representations learning, we therefore want to stack multiple attention blocks, but before we do so we apply a feedforward layer to the output of each attention block for the reasons we describe below.

PyTorch reference

PyTorch class	Description
`nn.Linear`	Applies an affine linear transformation to the incoming data: $y = xA^T + b$ .
`nn.MultiheadAttention`	Allows the model to jointly attend to information from different representation subspaces.
`nn.LayerNorm`	Applies Layer Normalization over a mini-batch of inputs.
`nn.Softmax`	Applies the Softmax function to an n-dimensional input Tensor.

Key references: (Lu et al., 2016; Wang et al., 2016; Andreas et al., 2015; Dauphin et al., 2016; Luong et al., 2015)

References

Andreas, J., Rohrbach, M., Darrell, T., Klein, D. (2015). Neural Module Networks.
Dauphin, Y., Fan, A., Auli, M., Grangier, D. (2016). Language Modeling with Gated Convolutional Networks.
Lu, J., Xiong, C., Parikh, D., Socher, R. (2016). Knowing When to Look: Adaptive Attention via A Visual Sentinel for Image Captioning.
Luong, M., Pham, H., Manning, C. (2015). Effective Approaches to Attention-based Neural Machine Translation.
Wang, J., Yang, Y., Mao, J., Huang, Z., Huang, C., et al. (2016). CNN-RNN: A Unified Framework for Multi-label Image Classification.
