Representing Images and Geometry

This section was written by Kaushik Kachireddy (pull request #74), with help from an AI coding agent (Claude Code) on the code. It reproduces the ideas of Chapter 38 of Foundations of Computer Vision by Antonio Torralba, Phillip Isola, and William T. Freeman. This section lays the foundation for all the geometry that follows. Three ideas drive it:

Homogeneous coordinates let you write translation, rotation, scaling, shearing, and projective warps as a single matrix multiplication.
Lines and points are dual under the cross product in homogeneous form: joining two points and intersecting two lines are the same operation.
Implicit image representations (SIREN-style networks that map $(x,y)\to \text{intensity}$ ) give you sub-pixel image access without an interpolation kernel, so geometric transformations become inverse-coordinate evaluations.

The figures are regenerated in PyTorch. Two of them go furthest: figure 38.8 reframes warping as a 1D convolution on coordinates, and figure 38.12 replaces the pixel grid with a neural network.

import math
from pathlib import Path
import torch
import torch.nn as nn
import kornia.geometry.transform as KT
import matplotlib.pyplot as plt
from matplotlib.patches import Polygon, Rectangle, Circle, FancyArrowPatch, PathPatch
from matplotlib.path import Path as MplPath
from matplotlib.collections import LineCollection
from mpl_toolkits.mplot3d.art3d import Poly3DCollection
from PIL import Image, ImageDraw
import skimage.data

torch.set_default_dtype(torch.float32)
_ = torch.manual_seed(0)

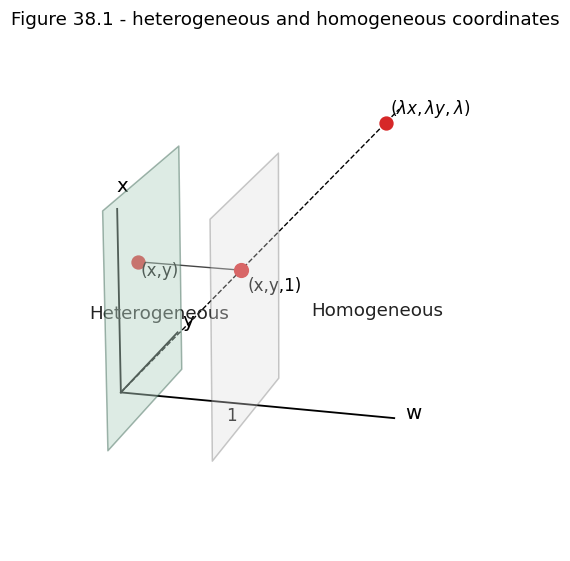

Homogeneous and heterogeneous coordinates

Heterogeneous coordinates write a 2D point as

(x, y)

. Homogeneous coordinates write the same point as

(x, y, 1)

, and also as

(\lambda x, \lambda y, \lambda)

for any

\lambda \ne 0

. All points on the ray through the origin and

(x, y, 1)

represent the same 2D point. Converting back means dividing by

w

\begin{bmatrix}x\\y\\w\end{bmatrix} \;\longrightarrow\; \left(\frac{x}{w}, \frac{y}{w}\right).

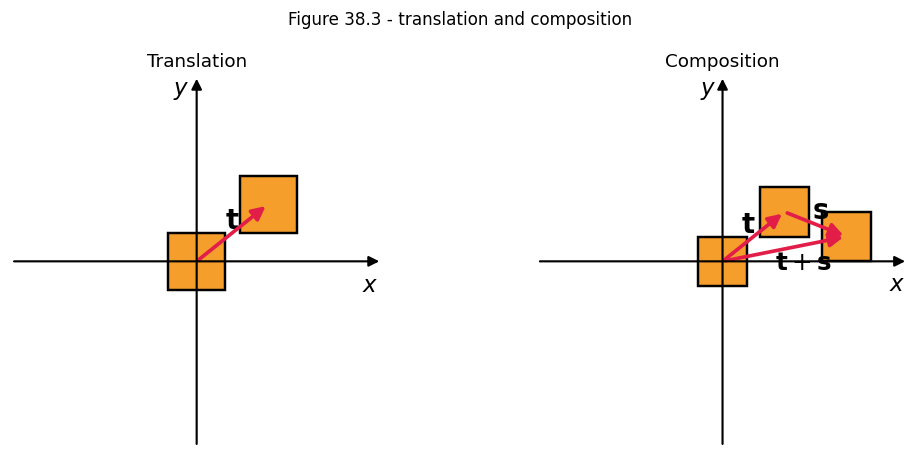

The payoff is that translation, an addition in heterogeneous coordinates, becomes a multiplication in homogeneous coordinates. This uniformity lets you compose any sequence of geometric transformations into a single matrix product.

def to_homogeneous(p):
    """Append a 1 to the last axis.  (..., D) -> (..., D+1)."""
    return torch.cat([p, torch.ones_like(p[..., :1])], dim=-1)


def from_homogeneous(p):
    """Divide by last coord. (..., D+1) -> (..., D)."""
    return p[..., :-1] / p[..., -1:]

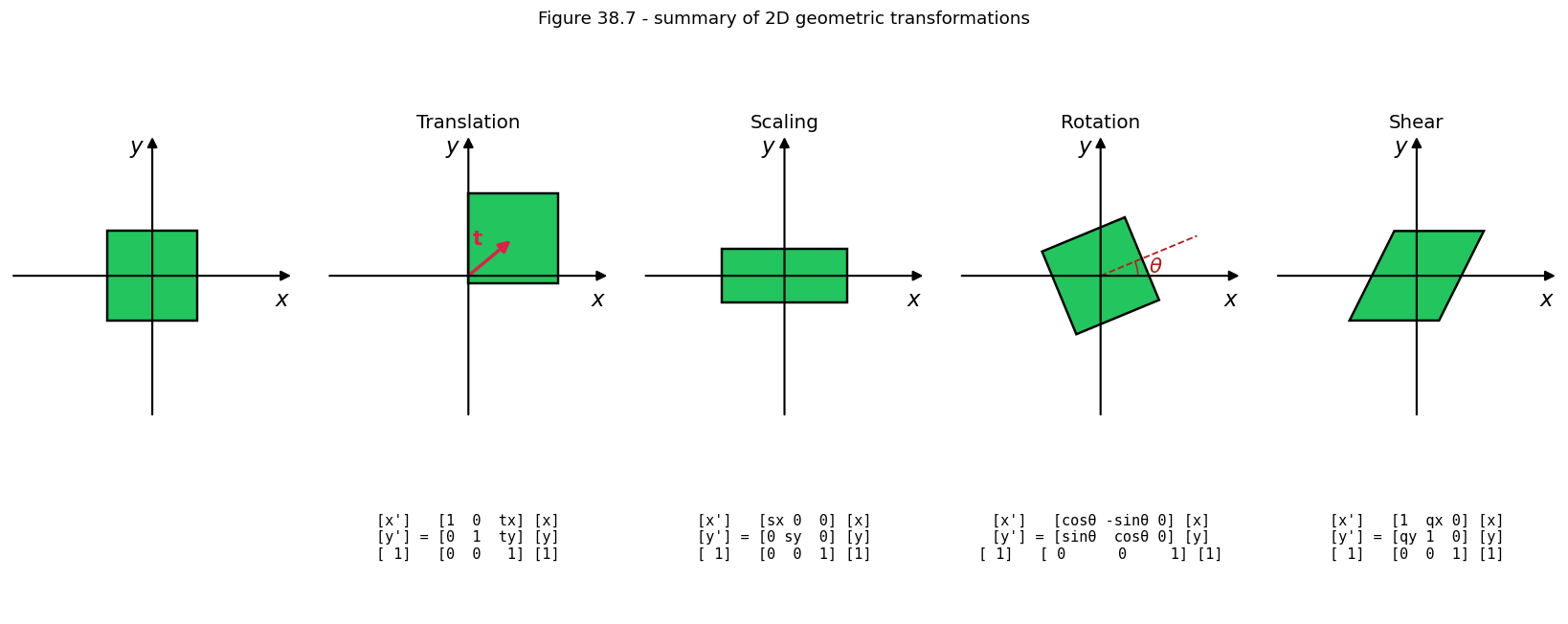

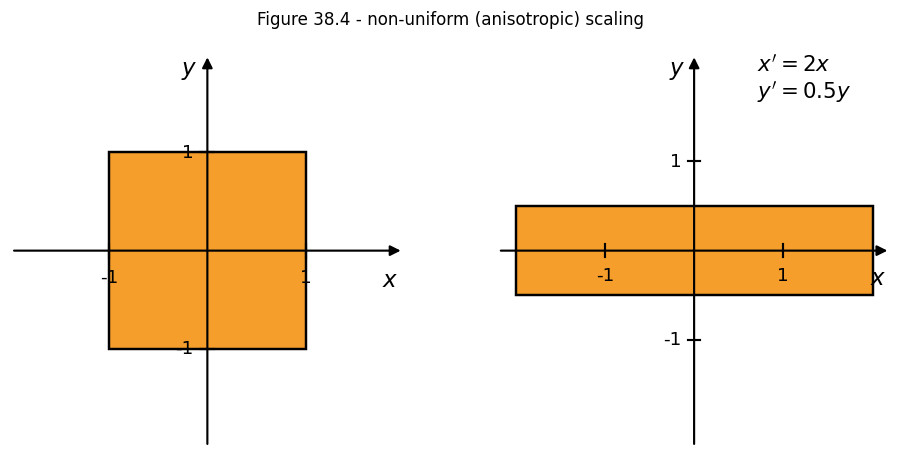

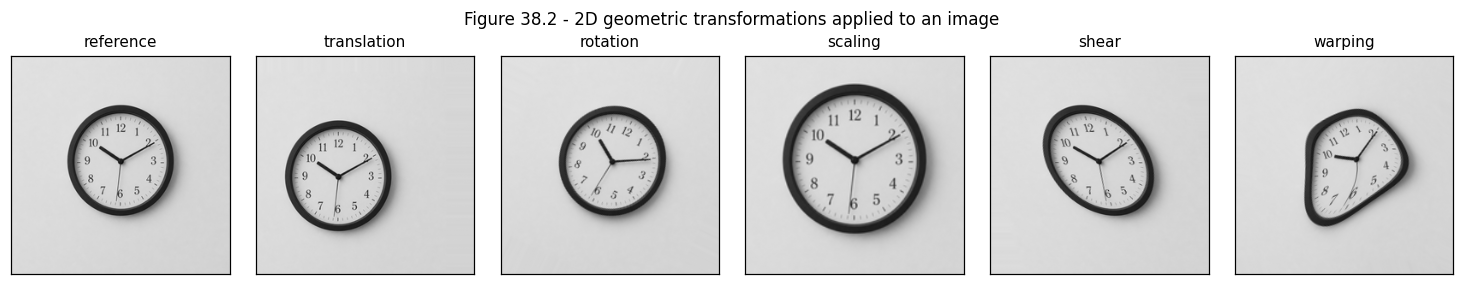

2D image transformations

Every transformation that follows is a

3\times 3

matrix acting on homogeneous points. The book applies each transformation to a photograph of a clock. Here a wall-clock image stands in for it, and each matrix is applied as an actual image warp with kornia.geometry.transform.warp_affine, so what you see is the matrix acting on real pixels.

# Reference object: an AI-generated wall-clock image supplied by the contributor,
# loaded as a torch tensor. It stands in for the book's own clock photograph,
# which is not reproduced here.
def apply_T(M, pts):
    """Apply 3x3 homogeneous matrix to (N, 2) points - still used by the
    hand-written forward_warp / backward_warp helpers in the warping section."""
    return from_homogeneous(to_homogeneous(pts) @ M.T)


CLOCK_URL = ("https://raw.githubusercontent.com/pantelis/eng-ai-agents/main/notebooks/CV/"
             "mit-foundations/chapter-38-images-and-geometry/assets/wallclock.png")


def clock_path():
    # Find the clock image next to this section, or download it once.
    for candidate in (Path("assets"), Path("notebooks/CV/mit-foundations/chapter-38-images-and-geometry/assets")):
        if (candidate / "wallclock.png").exists():
            return candidate / "wallclock.png"
    import urllib.request
    local = Path("wallclock.png")
    if not local.exists():
        urllib.request.urlretrieve(CLOCK_URL, local)
    return local


def render_clock(size=256):
    """Load the bundled wall-clock asset (assets/wallclock.png) as-is.
    The asset already has natural background padding around the clock, so we
    just resize to `size` if needed and return the tensor unchanged."""
    img = Image.open(clock_path()).convert("L")
    if img.size != (size, size):
        img = img.resize((size, size), Image.LANCZOS)
    pixels = torch.frombuffer(bytearray(img.tobytes()), dtype=torch.uint8)
    return pixels.to(torch.float32).view(size, size) / 255.0


CLOCK = render_clock(256)
CLOCK_H, CLOCK_W = CLOCK.shape


def warp_image(img, M_3x3, dsize=None):
    """Apply a 3x3 homogeneous matrix to an image via kornia (backward, bilinear).
    Convention: M maps source pixel coords to target coords."""
    H, W = img.shape
    if dsize is None:
        dsize = (H, W)
    img_bchw = img.unsqueeze(0).unsqueeze(0)
    M_b23 = M_3x3[:2, :3].unsqueeze(0)
    out = KT.warp_affine(img_bchw, M_b23, dsize=dsize, mode="bilinear", padding_mode="border")
    return out.squeeze(0).squeeze(0)

def T_translate(tx, ty):
    return torch.tensor([[1.0, 0.0, tx], [0.0, 1.0, ty], [0.0, 0.0, 1.0]])


def T_scale(sx, sy, cx=0.0, cy=0.0):
    """Scale about the point (cx, cy)."""
    return (
        torch.tensor([[1.0, 0.0, cx], [0.0, 1.0, cy], [0.0, 0.0, 1.0]])
        @ torch.tensor([[sx, 0.0, 0.0], [0.0, sy, 0.0], [0.0, 0.0, 1.0]])
        @ torch.tensor([[1.0, 0.0, -cx], [0.0, 1.0, -cy], [0.0, 0.0, 1.0]])
    )

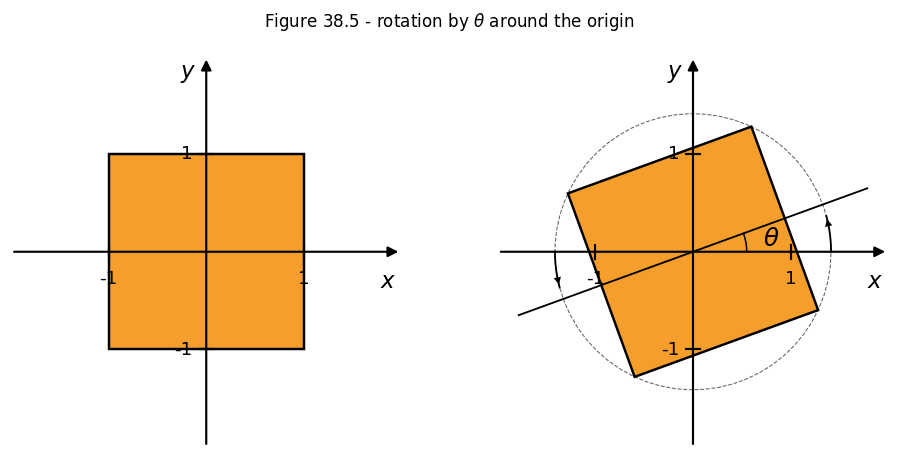

def T_rotate(theta, cx=0.0, cy=0.0):
    """Rotation about (cx, cy) by theta radians (image-down y)."""
    c, s = math.cos(theta), math.sin(theta)
    return (
        torch.tensor([[1.0, 0.0, cx], [0.0, 1.0, cy], [0.0, 0.0, 1.0]])
        @ torch.tensor([[c, -s, 0.0], [s, c, 0.0], [0.0, 0.0, 1.0]])
        @ torch.tensor([[1.0, 0.0, -cx], [0.0, 1.0, -cy], [0.0, 0.0, 1.0]])
    )

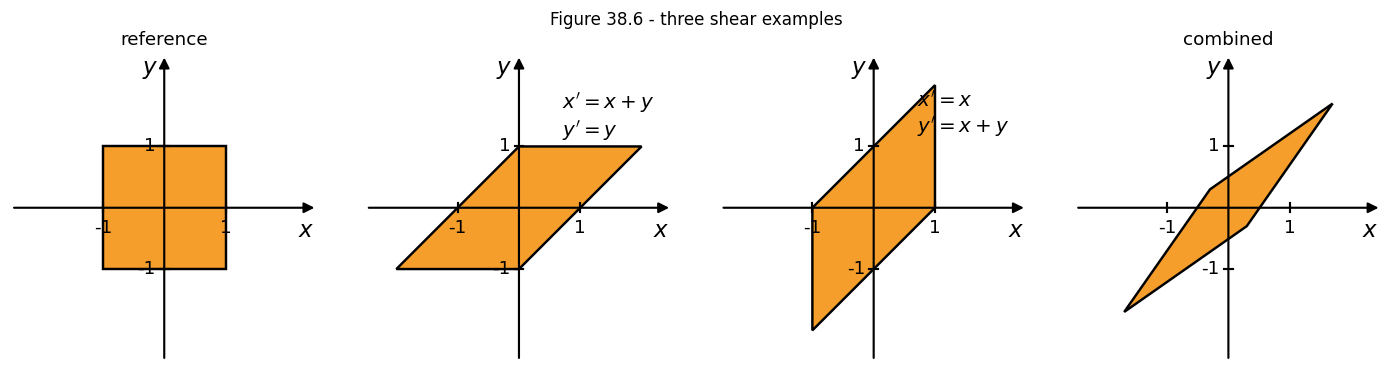

def T_shear(shx, shy):
    return torch.tensor([[1.0, shx, 0.0], [shy, 1.0, 0.0], [0.0, 0.0, 1.0]])


def T_projective_warp(strength=0.0028):
    """A homography that visibly tilts the image (right side closer to camera).
    Bigger strength -> more pronounced trapezoidal warp."""
    M = torch.eye(3)
    M[2, 0] = strength            # right side shrinks toward vanishing point
    M[2, 1] = -strength * 0.55    # top tilts inward
    return M


# Inverse of each transform is what warp_affine wants (backward mapping),
# but kornia's warp_affine expects the source-to-target matrix and inverts
# internally, so the forward transform is passed.
cx, cy = CLOCK_W / 2, CLOCK_H / 2

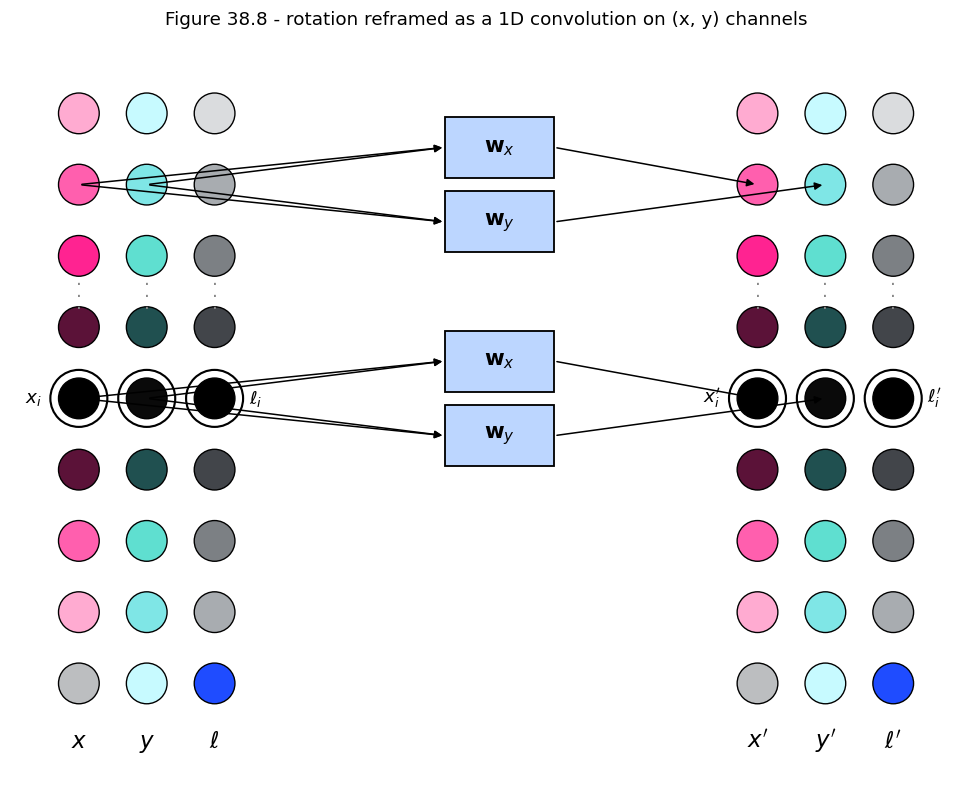

Geometric transformation as a convolution

If you represent an image as a set of triples

\{(\ell_i, x_i, y_i)\}

(intensity plus explicit position), then a rotation is a 1D convolution on the position channels:

\begin{bmatrix}x'\\y'\end{bmatrix} = \underbrace{\begin{bmatrix}\cos\theta & -\sin\theta\\\sin\theta & \cos\theta\end{bmatrix}}_{\text{kernels } w_x, w_y} \begin{bmatrix}x\\y\end{bmatrix}.

Intensity passes through untouched; only the coordinate channels are mixed (figure 38.8). This framing makes it natural to learn warps with neural networks that operate on coordinate channels, and the rest of the section builds that bridge.

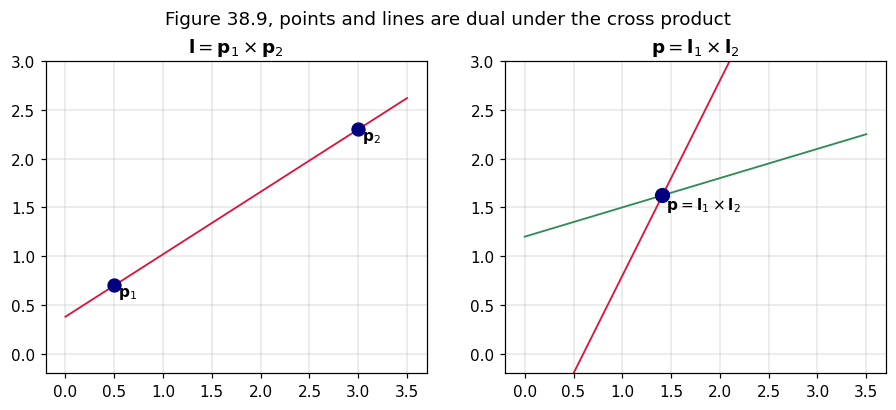

Lines and points: cross-product duality

In homogeneous coordinates, a 2D line

ax + by + c = 0

is the vector

\mathbf{l} = (a, b, c)

, and incidence is

\mathbf{l}^\top \mathbf{p} = 0

. Two operations turn out to be the same cross product:

\mathbf{l} = \mathbf{p}_1 \times \mathbf{p}_2 \qquad \text{(line through two points)}

\mathbf{p} = \mathbf{l}_1 \times \mathbf{l}_2 \qquad \text{(intersection of two lines)}

Parallel lines intersect at a point with

w = 0

: a point at infinity, the homogeneous form of a vanishing point. The section on 3D motion and its 2D projection uses exactly this construction.

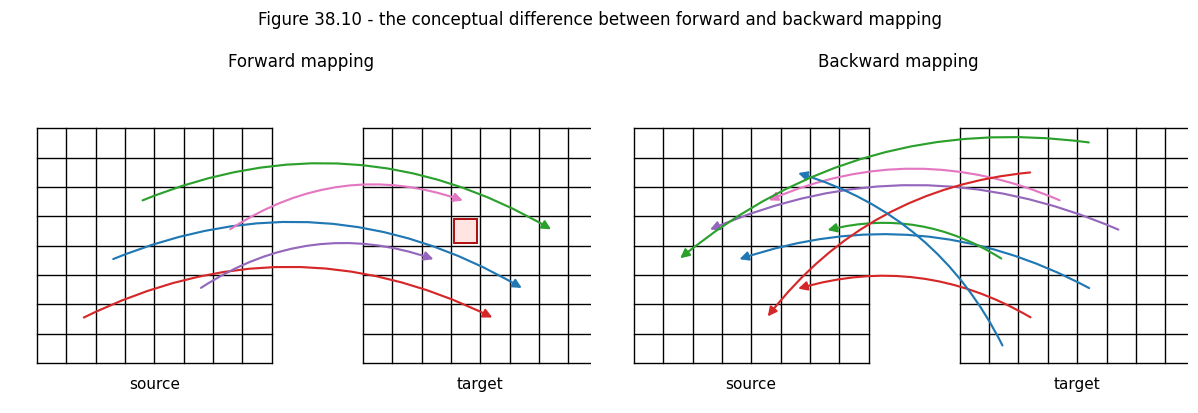

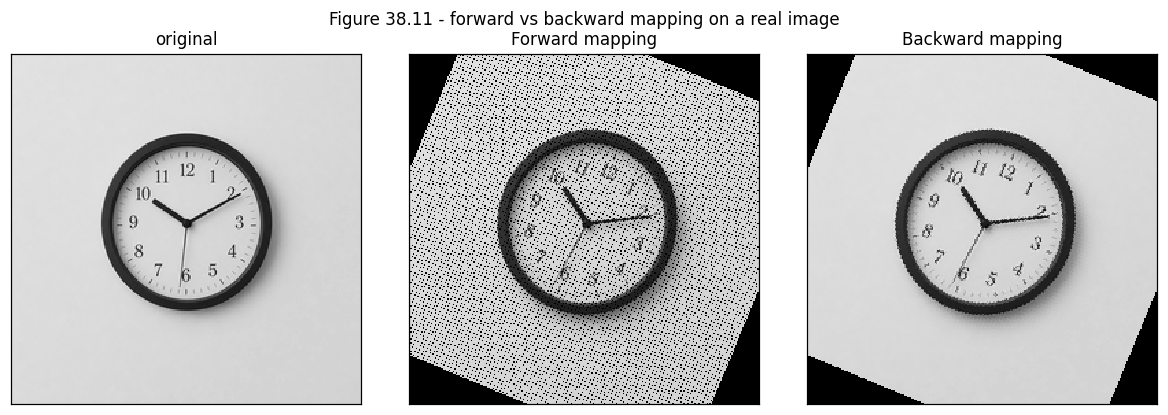

Image warping: forward and backward mapping

Applying a transformation

M

to an image should give you a new image. The naive way, forward mapping, walks the input pixels, transforms each location, and writes its intensity to the nearest target pixel. That leaves holes, because an expansion spreads the input pixels too thinly to cover the target grid. The correct way, backward mapping, walks the target pixels and pulls each back through

M^{-1}

, so every output pixel gets one well-defined intensity (figures 38.10 and 38.11). A small checkerboard makes the artifacts easy to see.

def make_checkerboard(n=80, squares=8):
    """Small checkerboard image as a tensor in [0, 1]."""
    g = (torch.arange(n)[:, None] // (n // squares)) + (torch.arange(n)[None, :] // (n // squares))
    return (g % 2).float()


def forward_warp(img, M):
    """Forward mapping with nearest-neighbor write. Produces holes."""
    H, W = img.shape
    out = torch.zeros_like(img)
    ys, xs = torch.meshgrid(torch.arange(H), torch.arange(W), indexing="ij")
    pts = torch.stack([xs.flatten().float(), ys.flatten().float()], dim=-1)
    new = apply_T(M, pts).round().long()
    new_x, new_y = new[:, 0], new[:, 1]
    mask = (new_x >= 0) & (new_x < W) & (new_y >= 0) & (new_y < H)
    out[new_y[mask], new_x[mask]] = img[ys.flatten()[mask], xs.flatten()[mask]]
    return out


def backward_warp(img, M):
    """Backward mapping with nearest-neighbor sample. Hole-free."""
    H, W = img.shape
    Minv = torch.linalg.inv(M)
    ys, xs = torch.meshgrid(torch.arange(H), torch.arange(W), indexing="ij")
    pts = torch.stack([xs.flatten().float(), ys.flatten().float()], dim=-1)
    src = apply_T(Minv, pts).round().long()
    src_x, src_y = src[:, 0], src[:, 1]
    mask = (src_x >= 0) & (src_x < W) & (src_y >= 0) & (src_y < H)
    out = torch.zeros_like(img)
    out.view(-1)[mask] = img[src_y[mask], src_x[mask]]
    return out

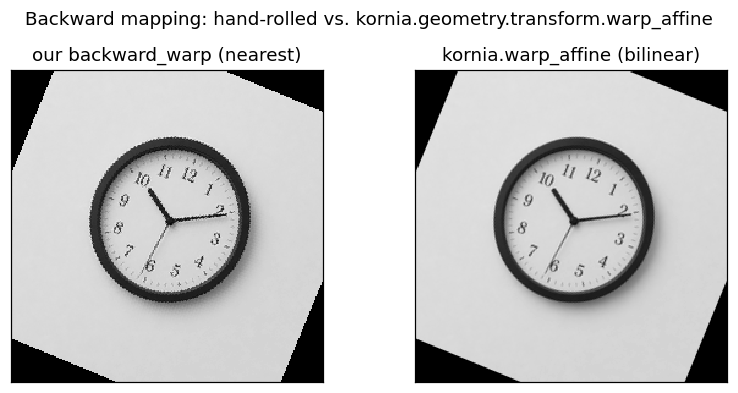

Differentiable warping with Kornia

The hand-written backward_warp above shows the principle. In practice you use Kornia, a differentiable computer vision library built on PyTorch. Its warp_affine performs the same backward mapping, but with bilinear interpolation (so no nearest-neighbor aliasing), in batches, and differentiably end to end. The next cell feeds it the same matrix

M

and compares the result with the hand-written version.

# kornia equivalent of backward_warp - bilinear, batched, differentiable.
# The clock image from above keeps the side-by-side on the same subject.
img_bchw = clock_img.unsqueeze(0).unsqueeze(0)
M_b23 = M[:2, :3].unsqueeze(0)
H, W = clock_img.shape
kornia_warp = KT.warp_affine(img_bchw, M_b23, dsize=(H, W), mode="bilinear")
kornia_warp = kornia_warp.squeeze(0).squeeze(0)

Implicit image representations (SIREN)

Backward mapping at sub-pixel locations needs an interpolation kernel, but only because the image is stored as a discrete grid. SIREN (Sitzmann et al., NeurIPS 2020) does away with the grid: it represents an image as a small network

f_\theta : (x, y) \to \text{intensity}

whose layers use

\sin

activations. The trained network is the image, and you can evaluate it at any continuous coordinate. Geometric warping then becomes a coordinate transform with no interpolation kernel:

\hat\ell(x, y) = f_\theta(M^{-1}(x, y, 1)^\top).

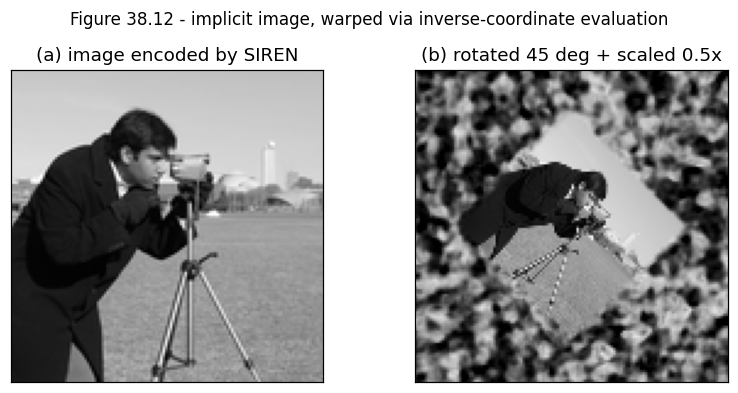

The next cells train a small SIREN on the cameraman test image and warp it by feeding pre-transformed coordinates (figure 38.12). The training is deliberately short: the point is to demonstrate the representation, not to maximize reconstruction quality.

class SIREN(nn.Module):
    """Tiny implicit image network. Sine-activated MLP per Sitzmann et al., 2020."""

    def __init__(self, hidden=256, layers=4, w0=30.0):
        super().__init__()
        self.w0 = w0
        net = [nn.Linear(2, hidden)]
        for _ in range(layers - 1):
            net.append(nn.Linear(hidden, hidden))
        net.append(nn.Linear(hidden, 1))
        self.net = nn.ModuleList(net)
        self._init_weights()

    def _init_weights(self):
        with torch.no_grad():
            self.net[0].weight.uniform_(-1 / 2, 1 / 2)
            for layer in self.net[1:]:
                bound = (6.0 / layer.in_features) ** 0.5 / self.w0
                layer.weight.uniform_(-bound, bound)

    def forward(self, xy):
        h = torch.sin(self.w0 * self.net[0](xy))
        for layer in self.net[1:-1]:
            h = torch.sin(self.w0 * layer(h))
        return self.net[-1](h)


def make_target_image(n=128):
    """Load the classic 'cameraman' test image (essentially what the book uses
    for Figure 38.12), center-crop, and downsample to n x n in [0, 1]."""
    cam = skimage.data.camera()                  # (512, 512) uint8
    H, W = cam.shape
    # Center-crop to square (already square, but stay explicit), then downsample
    side = min(H, W)
    cy0, cx0 = (H - side) // 2, (W - side) // 2
    cropped = cam[cy0:cy0 + side, cx0:cx0 + side]
    # Convert through PIL for nice resampling, then bytes -> torch (no numpy on the math side).
    img = Image.fromarray(cropped, mode="L").resize((n, n), Image.LANCZOS)
    pixels = torch.frombuffer(bytearray(img.tobytes()), dtype=torch.uint8)
    return pixels.to(torch.float32).view(n, n) / 255.0


def coord_grid(n):
    """Regular [-1, 1]^2 grid of shape (n*n, 2)."""
    ys = torch.linspace(-1, 1, n)
    xs = torch.linspace(-1, 1, n)
    yy, xx = torch.meshgrid(ys, xs, indexing="ij")
    return torch.stack([xx.flatten(), yy.flatten()], dim=-1)

# Train SIREN on the cameraman image. Real images need more capacity / steps
# than a synthetic blob; 2000 steps with a slightly wider MLP gets a decent
# memorisation in ~10s on CPU.
N = 128
target = make_target_image(N).flatten().unsqueeze(-1)
grid = coord_grid(N)

model = SIREN(hidden=256, layers=4, w0=30.0)
optim = torch.optim.Adam(model.parameters(), lr=1e-4)

for step in range(2000):
    pred = model(grid)
    loss = ((pred - target) ** 2).mean()
    optim.zero_grad()
    loss.backward()
    optim.step()

print(f"final reconstruction MSE: {loss.item():.4f}")

final reconstruction MSE: 0.0000

Concluding remarks

The section moves forward one promotion at a time:

Heterogeneous to homogeneous: every affine and projective transformation becomes a single matrix product.
Points and lines to cross-product duality: incidence, joins, and intersections collapse into one operation. Parallel lines meet at points with $w=0$ , so vanishing points get a coordinate.
Discrete grid to implicit function: with SIREN, the image is its parameters. Warping becomes an inverse-coordinate query and interpolation kernels disappear.

Every later geometry chapter of the book (perspective projection in 39, stereo in 40, homographies in 41, single-view metrology in 42, structure from motion in 44, radiance fields in 45) reuses the homogeneous algebra and the point and line duality set up here.

Edit this page on GitHub or file an issue.

Physical AI

3D Reconstruction

Imitation Learning

World Models

VLA Models

Sim-to-Real Transfer

Representing Images and Geometry

Homogeneous and heterogeneous coordinates

2D image transformations

Geometric transformation as a convolution

Lines and points: cross-product duality

Image warping: forward and backward mapping

Differentiable warping with Kornia

Implicit image representations (SIREN)

Concluding remarks

​Homogeneous and heterogeneous coordinates

​2D image transformations

​Geometric transformation as a convolution

​Lines and points: cross-product duality

​Image warping: forward and backward mapping

​Differentiable warping with Kornia

​Implicit image representations (SIREN)

​Concluding remarks

Homogeneous and heterogeneous coordinates

2D image transformations

Geometric transformation as a convolution

Lines and points: cross-product duality

Image warping: forward and backward mapping

Differentiable warping with Kornia

Implicit image representations (SIREN)

Concluding remarks
