import torch
import matplotlib.pyplot as plt

torch.manual_seed(0)

def cov_matrix(X):
    """Population covariance with features in columns: Xc^T Xc / n."""
    Xc = X - X.mean(dim=0, keepdim=True)
    return (Xc.T @ Xc) / X.shape[0]

​
Variance and covariance

Variance measures how a single feature spreads around its mean; covariance measures how two features vary together. For a data matrix XX with nn rows (observations) and features in the columns, center each column and the covariance matrix is Σ=1n Xc⊤Xc,Xc=X−Xˉ.\Sigma = \frac{1}{n}\, X_c^\top X_c, \qquad X_c = X - \bar{X}. The diagonal holds the per-feature variances; the off-diagonal entry (i,j)(i,j) is the covariance between features ii and jj.
A = torch.tensor([[1., 3., 5.],
                  [5., 4., 1.],
                  [3., 8., 6.]])

manual = cov_matrix(A)                 # features in columns
builtin = torch.cov(A.T, correction=0) # torch.cov expects variables in rows; correction=0 -> /n
print("manual:\n", manual)
print("torch.cov:\n", builtin)
assert torch.allclose(manual, builtin, atol=1e-5)
print("OK: Xc^T Xc / n equals torch.cov")

manual:
 tensor([[ 2.6667,  0.6667, -2.6667],
        [ 0.6667,  4.6667,  2.3333],
        [-2.6667,  2.3333,  4.6667]])
torch.cov:
 tensor([[ 2.6667,  0.6667, -2.6667],
        [ 0.6667,  4.6667,  2.3333],
        [-2.6667,  2.3333,  4.6667]])
OK: Xc^T Xc / n equals torch.cov

​
Visualizing data and its covariance

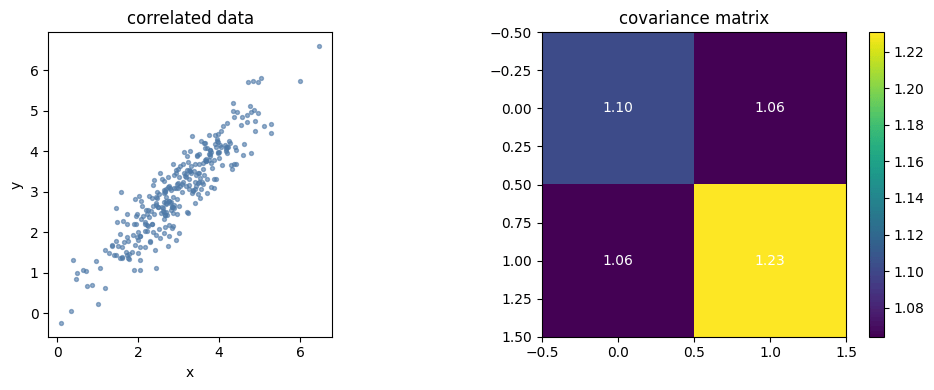

A scatter plot shows the shape of a two-dimensional dataset, and a heatmap of its covariance matrix shows the same structure numerically: bright off-diagonal entries mean the two features move together.

​
Simulating data

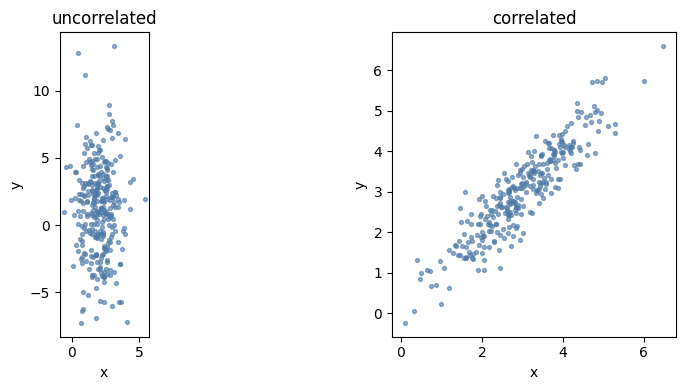

Start with two independent Gaussian features: the scatter is an axis-aligned cloud and the covariance is nearly diagonal. Then build a dependent pair, where one feature is a noisy copy of the other: the cloud tilts and the off-diagonal covariance grows.
# Uncorrelated: two independent Gaussian features
a1 = torch.normal(2.0, 1.0, (300,))
a2 = torch.normal(1.0, 3.0, (300,))
uncorrelated = torch.stack([a1, a2], dim=1)

# Correlated: second feature is the first plus noise
b1 = torch.normal(3.0, 1.0, (300,))
b2 = b1 + torch.normal(0.0, 1.0, (300,)) * 0.5
correlated = torch.stack([b1, b2], dim=1)

print("uncorrelated off-diagonal:", cov_matrix(uncorrelated)[0, 1].item())
print("correlated   off-diagonal:", cov_matrix(correlated)[0, 1].item())
assert cov_matrix(correlated)[0, 1] > cov_matrix(uncorrelated)[0, 1].abs()

uncorrelated off-diagonal: -0.07187948375940323
correlated   off-diagonal: 1.06403648853302
Output from cell 5 Output from cell 6 Output from cell 7

​
Preprocessing: centering, standardization, and whitening

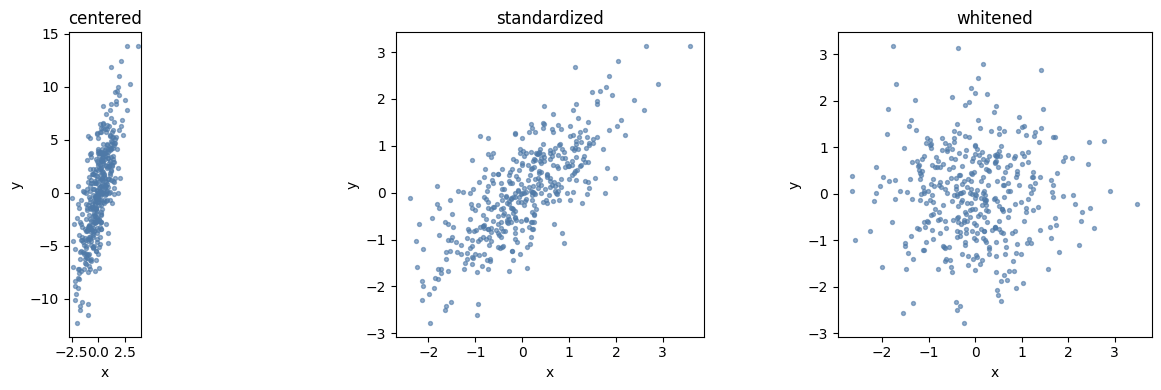

Centering subtracts the per-feature mean. Standardization additionally divides by the per-feature standard deviation, putting every feature on the same scale. Whitening goes further: it removes the correlations between features so that the covariance matrix becomes the identity. Whitening has three steps: center the data, rotate it onto the eigenvectors of the covariance matrix (which decorrelates it), then rescale each new axis by 1/λ+ϵ1/\sqrt{\lambda + \epsilon}, where λ\lambda is the corresponding eigenvalue and ϵ\epsilon is a small stabilizer.
def center(X):
    return X - X.mean(dim=0, keepdim=True)

def standardize(X):
    return center(X) / X.std(dim=0, unbiased=False, keepdim=True)

def whiten(X, eps=1e-5):
    Xc = center(X)
    cov = (Xc.T @ Xc) / Xc.shape[0]
    eigvals, eigvecs = torch.linalg.eigh(cov)   # cov is symmetric PSD
    Xrot = Xc @ eigvecs                          # decorrelate (rotate onto eigenbasis)
    return Xrot / torch.sqrt(eigvals + eps)      # rescale each axis to unit variance

# Build a correlated dataset with different per-feature scales
c1 = torch.normal(3.0, 1.0, (400,))
c2 = (c1 + torch.normal(0.0, 1.0, (400,))) * 3.0
C = torch.stack([c1, c2], dim=1)

Cw = whiten(C)
cov_white = cov_matrix(Cw)
print("covariance after whitening:\n", cov_white)
assert torch.allclose(cov_white, torch.eye(2), atol=1e-3)
print("OK: whitening produces (approximately) identity covariance")

covariance after whitening:
 tensor([[ 9.9998e-01, -1.2308e-07],
        [-1.2308e-07,  1.0000e+00]])
OK: whitening produces (approximately) identity covariance
Output from cell 9

​
Image whitening with ZCA

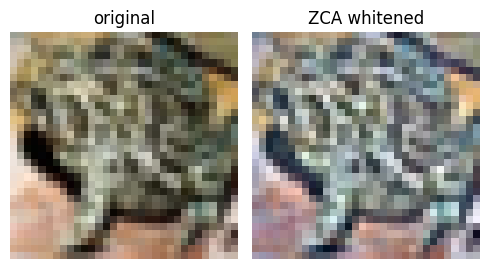

Whitening extends to images. Each image is a high-dimensional vector (here a 32 by 32 color image, so 3072 values). Zero-phase component analysis (ZCA) whitening decorrelates the pixel dimensions while keeping the result as close as possible to the original image, so the whitened picture still looks like the scene with its local structure emphasized. The ZCA transform is XZCA=Xc U diag ⁣(1S+ϵ)U⊤,X_{\text{ZCA}} = X_c\, U\, \mathrm{diag}\!\left(\tfrac{1}{\sqrt{S + \epsilon}}\right) U^\top, where UU and SS come from the singular value decomposition of the pixel covariance matrix.
from datasets import load_dataset
from torchvision.transforms.functional import pil_to_tensor

ds = load_dataset("uoft-cs/cifar10", split="train[:1000]")
X = torch.stack([pil_to_tensor(im) for im in ds["img"]]).float() / 255.0  # (1000, 3, 32, 32)
X_flat = X.reshape(X.shape[0], -1)                                         # (1000, 3072)
print("image tensor:", tuple(X.shape), "flattened:", tuple(X_flat.shape))

image tensor: (1000, 3, 32, 32) flattened: (1000, 3072)

Xc = X_flat - X_flat.mean(dim=0, keepdim=True)   # per-pixel mean subtraction
cov = (Xc.T @ Xc) / Xc.shape[0]                  # (3072, 3072)
U, S, _ = torch.linalg.svd(cov)
eps = 0.1
zca = U @ torch.diag(1.0 / torch.sqrt(S + eps)) @ U.T
X_zca = Xc @ zca.T
print("ZCA matrix:", tuple(zca.shape))

ZCA matrix: (3072, 3072)
Output from cell 12

​
References

  • N. Pal and S. Sudeep, “Preprocessing for image classification by convolutional neural networks,” 2016.
  • A. Krizhevsky, “Learning Multiple Layers of Features from Tiny Images,” 2009 (the CIFAR-10 dataset).
  • See also the whitening lecture for how whitening relates to batch normalization, and the Gaussians page for the distribution this section preprocesses.
