In the histogram analysis we used histograms to quantify the pixel-level information of the Seamagine dataset images and we saw that the performance of AD on pixel level metrics is dismal. The answer to this problem is to use a feature extraction method that can provide a hierarchical aggregation of the features of the image and project them into a lower-dimensional space - the manifold.
Here we use a pretrained Convolutional Neural Network (CNN) to provide such features in the form of a 2048-dim vector that we then feed into a UMAP algorithm.
The aim here is to extract representations mapped into an embedded space in such a way that nominal images that are similar to each other have a smaller distance between them than images that are dissimilar. In other words, some form of clustering in the embedded space is observed where we should expect the vast majority of nominal images to cluster closer together while the anomalous ones to form a cluster that is topologically separated from the nominal cluster or has a small overlap with it.
ResNet-50
The ResNet-50 model is a deep convolutional neural network. It was pretrained in a discriminative way on a large dataset of natural images known as ImageNet that has K=1000 classes.
For each 224×224 dataset image in our training dataset we obtain a 2048-dim vector at the global pooling layer.

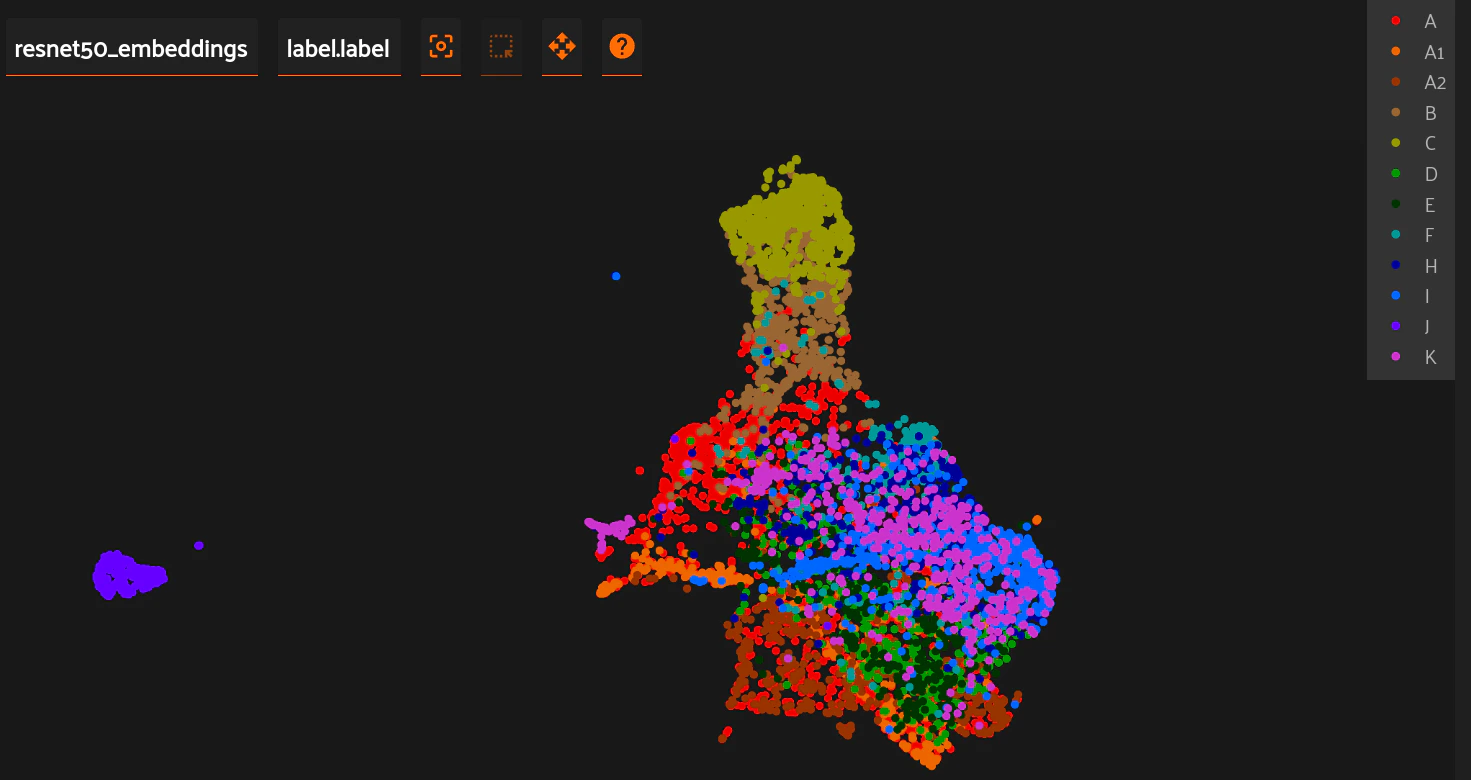

Visualizing the test and train datasets with UMAP
We tried three dimension-reducing algorithms: PCA, UMAP and t-SNE and based on the results we selected the UMAP algorithm for this task. UMAP forms clusters that construct a weighted k-nearest neighbors graph to model the high-dimensional data structure and then optimizes a low-dimensional representation of this graph to preserve topological features of the original data.
The visualization above is indicative of the clustering but clustering needs to be quantified in a dimensional space that is greater than d=2 or d=3 that is used for visualization purposes.
