Optimization Algorithms

Training a model means searching the weight space for the parameters that minimize a loss. This section builds that search from the ground up: plain gradient descent on a convex objective, then the stochastic and mini-batch variants that let it scale to large datasets, and finally the same loop expressed with PyTorch. It is the engine behind the linear regression fits and, eventually, deep-network training. The loss being minimized is the empirical risk defined on the empirical and expected risk page.

Gradient descent

Optimization minimizes a function

L(\boldsymbol{\theta})

by adjusting

\boldsymbol{\theta}

. The derivative

L'(w)

gives the slope: to first order

L(w + \epsilon) \approx L(w) + \epsilon\, L'(w)

, so moving a small step against the derivative decreases

L

. For a vector of weights the gradient

\nabla_{\boldsymbol{\theta}} L

collects all partial derivatives, and gradient descent repeatedly steps downhill,

\boldsymbol{\theta}_{k+1} = \boldsymbol{\theta}_k - \eta\, \nabla_{\boldsymbol{\theta}} L(\boldsymbol{\theta}_k),

where the learning rate

\eta

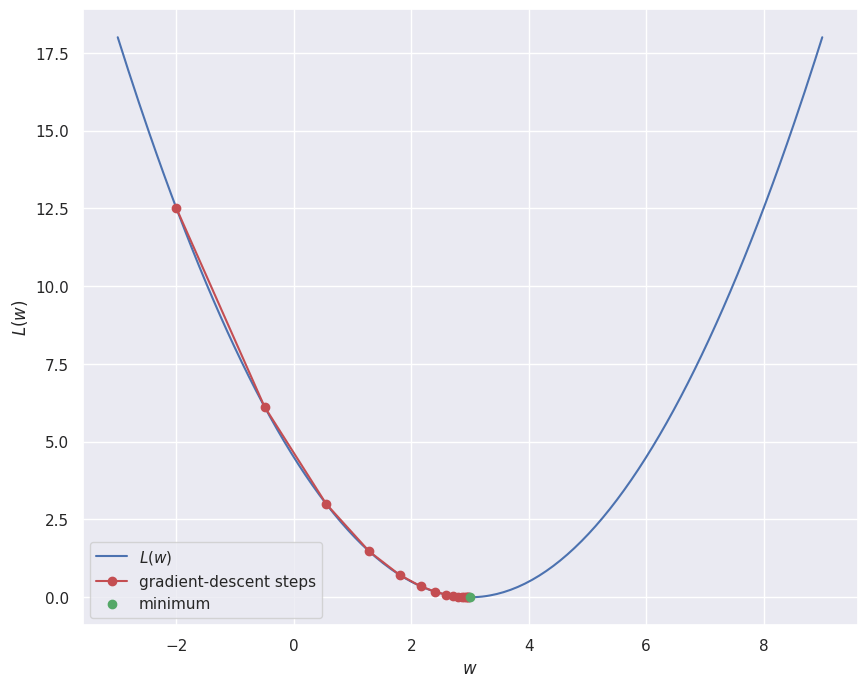

scales the step. On a convex bowl the iterates march steadily to the unique minimum.

def L(w):
    return 0.5 * (w - 3.0) ** 2     # convex bowl, minimum at w = 3
def dL(w):
    return w - 3.0

w, eta, traj = -2.0, 0.3, [-2.0]
for _ in range(15):
    w = w - eta * dL(w)
    traj.append(w)
traj = np.array(traj)
print(f"start w = {traj[0]:.2f}  ->  final w = {traj[-1]:.4f}   (true minimum at w = 3)")

start w = -2.00  ->  final w = 2.9763   (true minimum at w = 3)

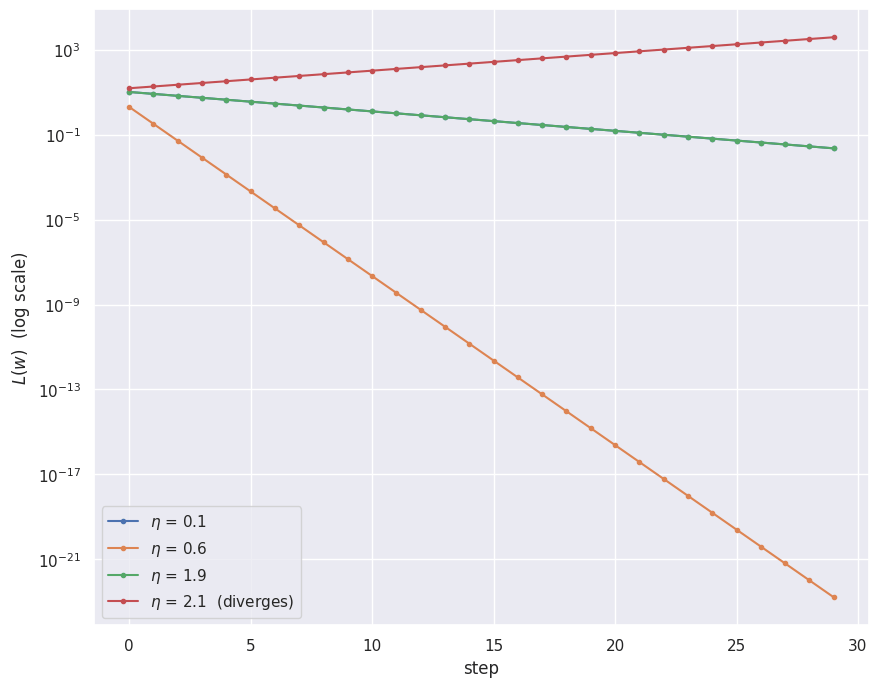

The learning rate

The learning rate sets the size of each step and is the most important knob. Too small and progress is glacial; too large and the steps overshoot the minimum and the iterates oscillate or diverge. For the quadratic above the update contracts the distance to the minimum by a factor

|1 - \eta|

per step, so anything with

\eta > 2

blows up.

def run_gd(eta, steps=30, w0=-2.0):
    w, hist = w0, []
    for _ in range(steps):
        w = w - eta * dL(w)
        hist.append(L(w))
    return np.array(hist)

etas = [0.1, 0.6, 1.9, 2.1]
curves = {eta: run_gd(eta) for eta in etas}

From full-batch to stochastic

In learning the loss is an average over the training set, and so is its gradient. For squared error with

m

examples,

L(\boldsymbol{\theta}) = \frac{1}{m}\sum_{i=1}^{m}\big(\boldsymbol{\theta}^{\top}\mathbf{x}_i - y_i\big)^2, \qquad \nabla_{\boldsymbol{\theta}} L = \frac{2}{m}\sum_{i=1}^{m}\big(\boldsymbol{\theta}^{\top}\mathbf{x}_i - y_i\big)\mathbf{x}_i.

Full-batch gradient descent sums over all

m

examples for every single update. With millions of examples that is prohibitive. Instead you estimate the gradient on a random mini-batch

\mathcal{B}

of size

B

; the special case

B = 1

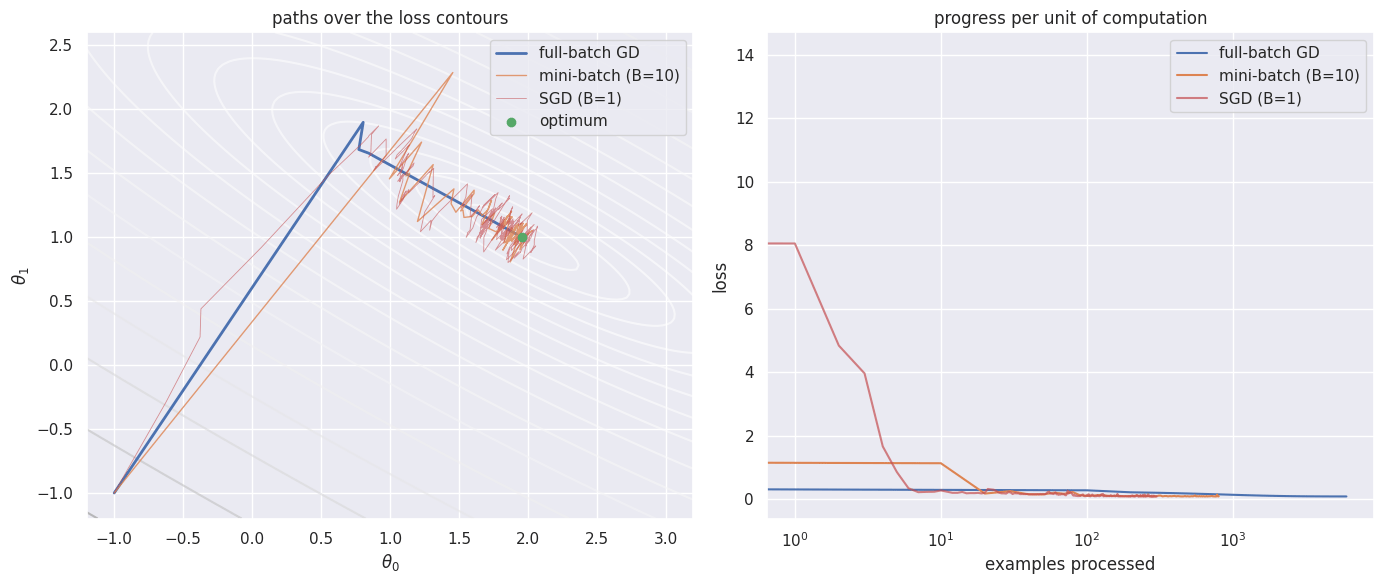

is stochastic gradient descent. The mini-batch gradient is an unbiased but noisy estimate of the full gradient, so each step is cheap and frequent, at the cost of a wandering trajectory. To see all three on one picture, fit a straight line

y = \theta_0 x + \theta_1

to noisy data: the loss over the two parameters is a bowl whose contours you can draw.

m = 100
x = rng.uniform(0, 1, m)
y = 2.0 * x + 1.0 + rng.normal(0, 0.3, m)     # true line theta = [2, 1] plus noise
X = np.c_[x, np.ones(m)]                        # design columns [x, 1]

def loss(theta):
    return np.mean((X @ theta - y) ** 2)
def grad(theta, idx):
    Xb, yb = X[idx], y[idx]
    return (2 / len(idx)) * (Xb.T @ (Xb @ theta - yb))

theta_star = np.linalg.solve(X.T @ X, X.T @ y)       # least-squares optimum

def descend(batch_size, epochs, eta, seed=0):
    g = np.random.default_rng(seed)
    theta = np.array([-1.0, -1.0])
    path, seen, cost = [theta.copy()], [0], 0
    losses = [loss(theta)]
    for _ in range(epochs):
        order = g.permutation(m)
        for s in range(0, m, batch_size):
            idx = order[s:s + batch_size]
            theta = theta - eta * grad(theta, idx)
            cost += len(idx)
            path.append(theta.copy()); seen.append(cost); losses.append(loss(theta))
    return np.array(path), np.array(seen), np.array(losses)

gd_path,  gd_seen,  gd_loss  = descend(batch_size=m,  epochs=60, eta=0.4)   # full batch
mb_path,  mb_seen,  mb_loss  = descend(batch_size=10, epochs=8,  eta=0.4)   # mini-batch
sgd_path, sgd_seen, sgd_loss = descend(batch_size=1,  epochs=3,  eta=0.1)   # SGD
print("optimum theta* =", np.round(theta_star, 3))

optimum theta* = [1.961 0.998]

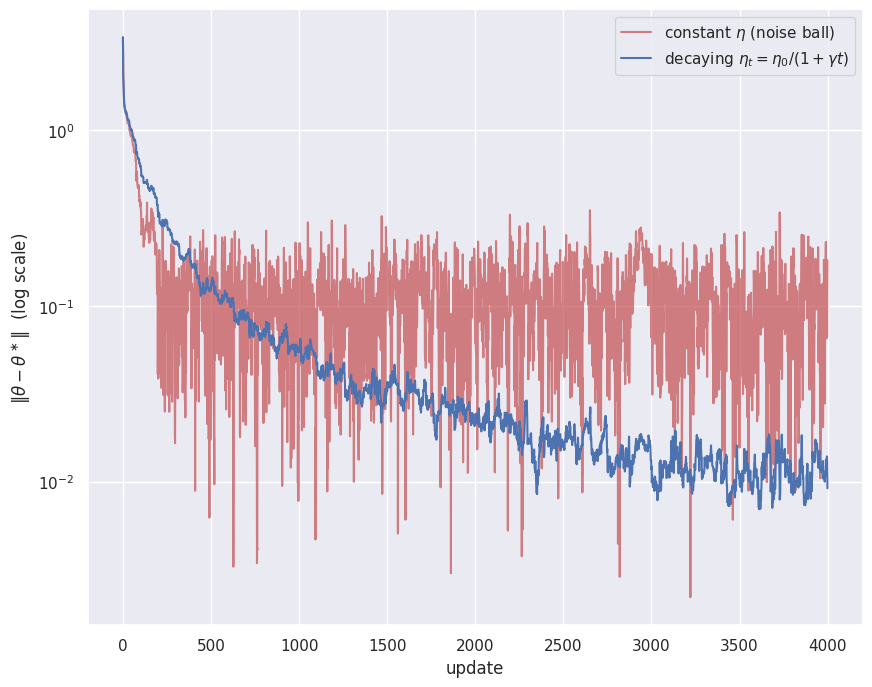

Gradient noise and learning-rate schedules

With a constant learning rate the stochastic gradient never vanishes, even at the optimum a single mini-batch still pulls in some direction. The iterate therefore settles into a noise ball around the minimum whose radius scales with

\eta

, bouncing rather than converging. Shrinking the learning rate over time, for example

\eta_t = \eta_0 / (1 + \gamma t)

, lets the ball contract so the iterate homes in. This is exactly the gap between the constant-rate and converged fits seen on the regression SGD example.

def sgd_schedule(eta0, decay, epochs=40, seed=1):
    g = np.random.default_rng(seed)
    theta, dist, t = np.array([-1.0, -1.0]), [], 0
    for _ in range(epochs):
        for i in g.permutation(m):
            eta = eta0 / (1 + decay * t)
            theta = theta - eta * grad(theta, [i])
            dist.append(np.linalg.norm(theta - theta_star)); t += 1
    return np.array(dist)

dist_const = sgd_schedule(0.1, 0.0)      # constant learning rate
dist_decay = sgd_schedule(0.1, 0.01)     # decaying learning rate
print(f"constant-eta final distance to optimum : {dist_const[-1]:.3f}")
print(f"decaying-eta final distance to optimum : {dist_decay[-1]:.3f}")

constant-eta final distance to optimum : 0.182
decaying-eta final distance to optimum : 0.009

The same loop in PyTorch

Frameworks automate two things you did by hand: autograd computes

\nabla_{\boldsymbol{\theta}} L

from the forward computation, and an optimizer object applies the update rule. The mechanics are identical, loss.backward() fills in the gradient and optimizer.step() performs

\boldsymbol{\theta} \leftarrow \boldsymbol{\theta} - \eta\nabla_{\boldsymbol{\theta}} L

import torch

Xt = torch.tensor(X, dtype=torch.float32)
yt = torch.tensor(y, dtype=torch.float32)
theta = torch.tensor([-1.0, -1.0], requires_grad=True)
optimizer = torch.optim.SGD([theta], lr=0.4)

for epoch in range(200):
    optimizer.zero_grad()
    loss_t = ((Xt @ theta - yt) ** 2).mean()
    loss_t.backward()                  # autograd fills theta.grad
    optimizer.step()                   # theta <- theta - lr * theta.grad

print("PyTorch SGD  theta =", np.round(theta.detach().numpy(), 3))
print("least squares theta* =", np.round(theta_star, 3))

PyTorch SGD  theta = [1.961 0.998]
least squares theta* = [1.961 0.998]

Takeaways

Gradient descent steps against the gradient; the learning rate $\eta$ sets the step size, and too large a value diverges.
The training loss is an average over data, so its gradient is too. Full-batch updates cost a complete pass, while mini-batch and stochastic updates trade gradient noise for cheap, frequent steps that make far more progress per unit of computation.
A constant learning rate leaves stochastic gradient descent circling in a noise ball; a decaying schedule lets it converge.
Autograd plus an optimizer object package this exact loop. The optimizer zoo section adds momentum and adaptive methods that handle the ill-conditioned, ravine-shaped landscapes where plain SGD struggles.

Key references: (Bottou et al., 2016; Goodfellow et al., 2014; Ruder2016-overview)

References

Bottou, L., Curtis, F., Nocedal, J. (2016). Optimization Methods for Large-Scale Machine Learning.
Goodfellow, I., Vinyals, O., Saxe, A. (2014). Qualitatively characterizing neural network optimization problems.
