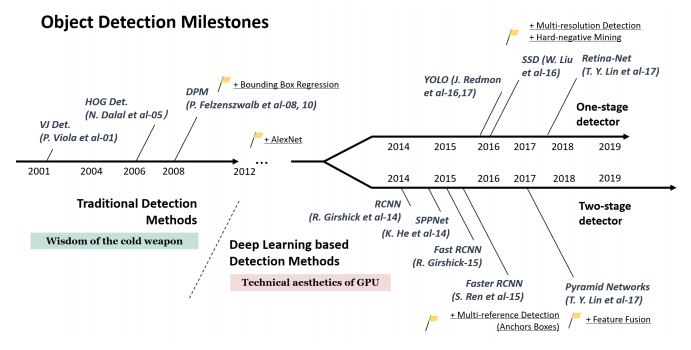

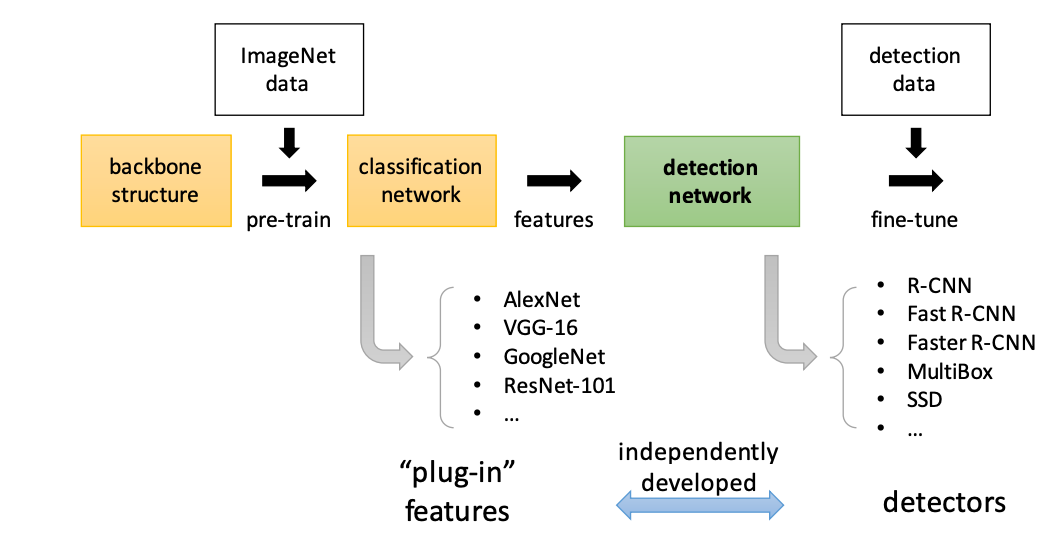

In the introductory section, we have seen examples of what object detection is. In this section we will treat the detection pipeline itself, summarized below: object-detection-e2e Object detection pipeline. Work on object detection spans 20 years and is impossible to cover every algorithmic approach in this section - the interested reader can trace these developments by reading in this paper. object-detection-roadmap As expected, since 2014, deep learning has surpassed classical ML in the detection competitions - we therefore focus only on such architectures. More specifically we will be focusing on the so called two stage detectors that employ two key ingredients:
  1. Region proposals.
  2. Fully Convolutional Networks (FCNs).
Object detection, involves three main stages: the feature extraction stage, the classification stage and the detection or localization stage. In the literature the feature and classification stages are counted as one, called the classification stage and people refer to such architecture as two stage. We also need to insert an additional requirement: to be able to detect objects in almost real time (20 frames per second) - a significant subset of what we call mission critical applications require it. Therefore will focus a specific family that is considered to be the canonical CNN architecture for detection - the family of region-based detectors.

​
Demo

Before we continue, you can try out a demo using your webcam and nothing else other than your browser. Key references: (Redmon et al., 2015; Ren et al., 2015; Redmon & Farhadi, 2016; Zhou et al., 2014; Zhou et al., 2014)

​
References

  • Redmon, J., Divvala, S., Girshick, R., Farhadi, A. (2015). You only look once: Unified, real-time object detection.
  • Redmon, J., Farhadi, A. (2016). YOLO9000: Better, Faster, Stronger.
  • Ren, S., He, K., Girshick, R., Sun, J. (2015). Faster R-CNN: Towards Real-Time Object Detection with Region Proposal Networks.
  • Zhou, B., Khosla, A., Lapedriza, A., Oliva, A., Torralba, A. (2014). Object detectors emerge in deep scene CNNs.
  • Zhou, B., Khosla, A., Lapedriza, À., Oliva, A., Torralba, A. (2014). Object detectors emerge in deep scene CNNs.
